Infrastructure: Flexible docker mounts for backend to test-runner transfer

Currently, the mount paths in backend , host and test-runner have to be identical. Change that for more flexible configurations.

assigned to @miguel.munoz-gil

// Set path of temporary directory on host _and_ inside our container, _must_ be identical
this.testTmpPathHost = Paths.get(env.getProperty("host.tests.tmp.dir"));

Is this issue as simple to solve as just adding another env property, one for the host path and another for the container? something like:

// Path on the host system just as it is
String hostTmpDir = env.getProperty("host.tests.dir");
// Path for the container
String containerTmpDir = env.getProperty("container.tests.dir");

//Get both paths as needed
this.testTmpPathHost = Paths.get(hostTmpDir);
this.testTmpPathContainer = Paths.get(containerTmpDir);

Then in the docker-compose I would add something to bind the desired directory to the one we have in the container, someting like this:

volumes:
    - "${HOST_DIR}:/container/tmp/tests"

or even:

volumes:
    - "${HOST_DIR}:${CONTAINER_DIR}"

And include the needed properties and environment variables

My question then would be, how do we define the correct folder in which the user needs to provide writing permits? I assume we need to provide writing permits in the desired $HOST_DIR folder to the docker group, how then do we ensure that the group has such permits and the user has done the set up properly?

added InProgress label

At my current point, I have setted flexible paths for the host and backend container, but when the host path is set outside the /tmp folder, I dont think the docker permits are aplying correctly, as I am not able to have the data written on them.

If that was the only problem, I could just keep the host path withing the tmp folder. But I am also facing the following:

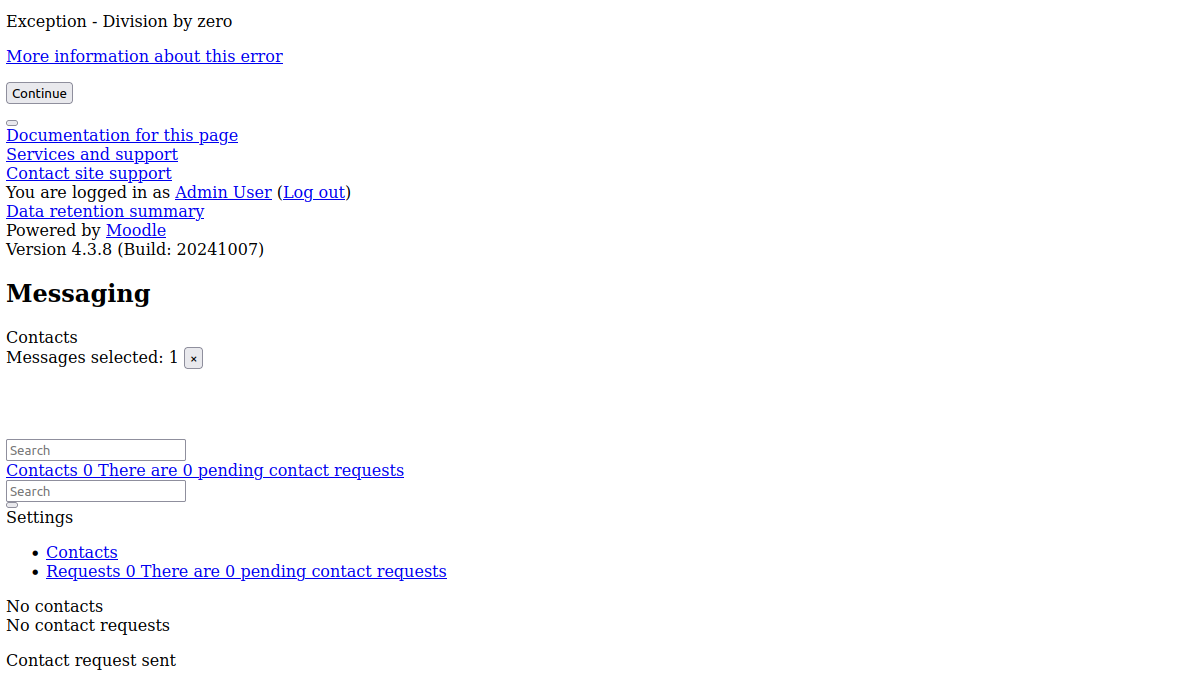

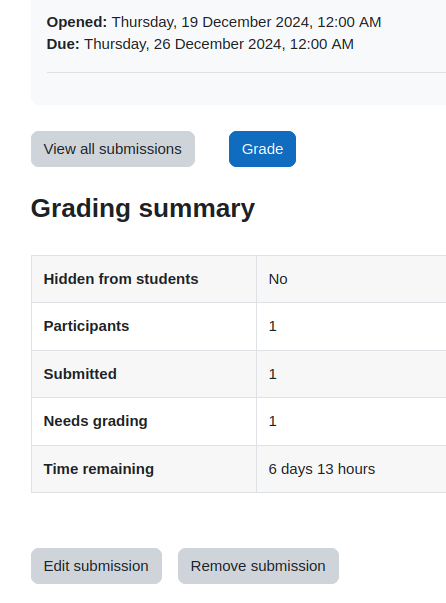

Despite having submitted (and sucessfully tested the assignment, the cota-backend container has the result.json generated), on the fontend there is a submission recognised, but when you click on view all submissions or grade action, there is a division by 0 error. Which I have no clue where does it come from.

@01kuni1bif @32khsa1mst @gero.lueckemeyer any ideas?

Good that you test thoroughly! To my shame, I must admit I do not remember ever having tested clicking on "grade"... so unfortunately, I have no idea.

It´s already giving a bad smell since after the submission it does not move to the results view. Then, the button of "view all submissions" and "grade", both have a divison by 0 error. I assume its related to the db somehow. But what´s confuising to me is that it recognises the 1 assignment submitted, and then when trying to visualize the results, it does not anymore.

I´ll try to keep debugging and change the host path to a folder within the tmp folder again.

added Test label

removed InProgress label

Latest idea: use a docker volume mount on the host side.

For that, replace ExecuteTestUtil, line 123ff

        dockerUtil.runContainer(

            image,

            new Bind(testPathHost.toAbsolutePath().toString(), new Volume("/data/test")),

            new Bind(srcPathHost.toAbsolutePath().toString(), new Volume("/data/src")),

            new Bind(resultPathHost.toAbsolutePath().toString(), new Volume("/data/result"))

        );

by new Volumes based on the directories. Then, we could dispense with the directory envirmonment variable and make the runner mount target(s) constants in the backend.

added InProgress label and removed Test label

created branch amg-dev-volumes to address this issue

Unfinished. Final state pushed to branch backend/amg-dev-volumes.
