Coding style and recommendations

The branch includes Niklas changes to show the correct recommendations after an assignment submission and changes the code style and naming to the moodle standard requirements.

dta/classes/models/dta_recommendation.php

+<?php
+// This file is part of Moodle - http://moodle.org/.
+//
+// Moodle is free software: you can redistribute it and/or modify
+// it under the terms of the GNU General Public License as published by
+// the Free Software Foundation, either version 3 of the License, or
+// (at your option) any later version.
+//
+// Moodle is distributed in the hope that it will be useful,
+// but WITHOUT ANY WARRANTY; without even the implied warranty of
+// MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
+// GNU General Public License for more details.
+//
+// You should have received a copy of the GNU General Public License
+// along with Moodle.  If not, see <http://www.gnu.org/licenses/>.
+
+/**
+ * Entity class for DTA submission plugin recommendation.
+ *
+ * @package    assignsubmission_dta
+ * @copyright  2023 Gero Lueckemeyer
+ * @license    http://www.gnu.org/copyleft/gpl.html GNU GPL v3 or later
+ */
+
+namespace assignsubmission_dta\models;
+
+/**
+ * Entity class for DTA submission plugin recommendation.
+ *
+ * @package    assignsubmission_dta
+ * @copyright  2023
+ * @license    http://www.gnu.org/copyleft/gpl.html GNU GPL v3 or later
+ */
+class dta_recommendation {
+
+    /**
+     * @var string $topic Topic of the recommendation.
+     */
+    public $topic;
+
+    /**
+     * @var string $exercisename Name of the exercise.
+     */
+    public $exercisename;
+
+    /**
+     * @var string $url URL of the exercise.
+     */
+    public $url;
+
+    /**
+     * @var int $difficulty Difficulty level of the exercise.
+     */
+    public $difficulty;
+
+    /**
+     * @var int $score Score associated with the recommendation.
+     */
+    public $score;
+
+    /**
+     * Decodes the JSON recommendations returned by the backend service call into an array of dta_recommendation objects.
+     *
+     * @param string $jsonstring JSON string containing recommendations.
+     * @return array Array of dta_recommendation objects.
+     */
+    public static function assignsubmission_dta_decode_json_recommendations(string $jsonstring): array {
+        $response = json_decode($jsonstring);
+        $recommendations = [];
+
+        // Check if recommendations exist.
+        if (!empty($response->recommendations)) {
+            foreach ($response->recommendations as $recommendation) {
+                $rec = new dta_recommendation();
+                $rec->topic = $recommendation->topic ?? null;
+
+                // Map correct fields to the renamed variable names.
+                $rec->exercisename = $recommendation->url ?? null;
+                $rec->url = $recommendation->exerciseName ?? null;
+                $rec->difficulty = $recommendation->difficulty ?? null;
+                $rec->score = $recommendation->score ?? null;
+
+                $recommendations[] = $rec;
+            }
+        }
+
+        return $recommendations;
+    }
+}

dta/classes/models/dta_result.php

+<?php
+// This file is part of Moodle - http://moodle.org/.
+//
+// Moodle is free software: you can redistribute it and/or modify
+// it under the terms of the GNU General Public License as published by
+// the Free Software Foundation, either version 3 of the License, or
+// (at your option) any later version.
+//
+// Moodle is distributed in the hope that it will be useful,
+// but WITHOUT ANY WARRANTY; without even the implied warranty of
+// MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
+// GNU General Public License for more details.
+//
+// You should have received a copy of the GNU General Public License
+// along with Moodle.  If not, see <http://www.gnu.org/licenses/>.
+
+/**
+ * Entity class for DTA submission plugin result.
+ *
+ * @package    assignsubmission_dta
+ * @copyright  2023 Gero Lueckemeyer and student project teams
+ * @license    http://www.gnu.org/copyleft/gpl.html GNU GPL v3 or later
+ */
+
+namespace assignsubmission_dta\models;
+
+/**
+ * Entity class for DTA submission plugin result.
+ *
+ * @package    assignsubmission_dta
+ * @copyright  2023 Gero Lueckemeyer and student project teams
+ * @license    http://www.gnu.org/copyleft/gpl.html GNU GPL v3 or later
+ */
+class dta_result {
+
+    /**
+     * Broadly used in logic, parametrized for easier change.
+     */
+    public const ASSIGNSUBMISSION_DTA_COMPONENT_NAME = 'assignsubmission_dta';
+
+    /**
+     * @var string $packagename Package name of the test.
+     */
+    public $packagename;
+
+    /**
+     * @var string $classname Unit name of the test.
+     */
+    public $classname;
+
+    /**
+     * @var string $name Name of the test.
+     */
+    public $name;
+
+    /**
+     * @var int $state State is defined as:
+     * 0 UNKNOWN
+     * 1 SUCCESS
+     * 2 FAILURE
+     * 3 COMPILATIONERROR
+     */
+    public $state;
+
+    /**
+     * @var string $failuretype Type of test failure if applicable, empty string otherwise.
+     */
+    public $failuretype;
+
+    /**
+     * @var string $failurereason Reason of test failure if applicable, empty string otherwise.
+     */
+    public $failurereason;
+
+    /**
+     * @var string $stacktrace Stack trace of test failure if applicable, empty string otherwise.
+     */
+    public $stacktrace;
+
+    /**
+     * @var int|string $columnnumber Column number of compile failure if applicable, empty string otherwise.
+     */
+    public $columnnumber;
+
+    /**
+     * @var int|string $linenumber Line number of compile failure if applicable, empty string otherwise.
+     */
+    public $linenumber;
+
+    /**
+     * @var int|string $position Position of compile failure if applicable, empty string otherwise.
+     */
+    public $position;
+
+    /**
+     * Returns the name of a state with the given number for display.
+     *
+     * @param int $state Number of the state.
+     * @return string Name of state as defined.
+     */
+    public static function assignsubmission_dta_get_statename(int $state): string {
+        if ($state === 1) {
+            return get_string('tests_successful', self::ASSIGNSUBMISSION_DTA_COMPONENT_NAME);
+        } else if ($state === 2) {
+            return get_string('failures', self::ASSIGNSUBMISSION_DTA_COMPONENT_NAME);
+        } else if ($state === 3) {
+            return get_string('compilation_errors', self::ASSIGNSUBMISSION_DTA_COMPONENT_NAME);
+        } else {
+            return get_string('unknown_state', self::ASSIGNSUBMISSION_DTA_COMPONENT_NAME);
+        }
+    }
+}

dta/classes/models/dta_result_summary.php

+<?php
+// This file is part of Moodle - http://moodle.org/.
+//
+// Moodle is free software: you can redistribute it and/or modify
+// it under the terms of the GNU General Public License as published by
+// the Free Software Foundation, either version 3 of the License, or
+// (at your option) any later version.
+//
+// Moodle is distributed in the hope that it will be useful,
+// but WITHOUT ANY WARRANTY; without even the implied warranty of
+// MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
+// GNU General Public License for more details.
+//
+// You should have received a copy of the GNU General Public License
+// along with Moodle.  If not, see <http://www.gnu.org/licenses/>.
+
+/**
+ * This file contains the DTA submission plugin result summary entity class.
+ *
+ * @package   assignsubmission_dta
+ * @copyright 2023 Your Name
+ * @license   http://www.gnu.org/copyleft/gpl.html GNU GPL v3 or later
+ */
+
+namespace assignsubmission_dta\models;
+
+/**
+ * Entity class for DTA submission plugin result summary.
+ *
+ * This class holds:
+ * - A timestamp for when the summary was generated.
+ * - An optional global stack trace (in case the entire process failed).
+ * - A competency profile of how many tests passed for each competency.
+ * - A competency profile of the total coverage for each competency.
+ * - An array of dta_result objects that detail individual test results.
+ *
+ * @package assignsubmission_dta
+ */
+class dta_result_summary {
+
+    /** @var int Unix timestamp for the summary. */
+    public $timestamp;
+
+    /** @var string A global stacktrace if the entire run had a fatal error (optional). */
+    public $globalstacktrace;
+
+    /** @var string Semi-colon-separated numbers for competencies actually passed. */
+    public $successfultestcompetencies;
+
+    /** @var string Semi-colon-separated numbers for total tested competencies. */
+    public $overalltestcompetencies;
+
+    /** @var dta_result[] Array of individual test results. */
+    public $results;
+
+    /**
+     * Decodes a JSON string into a dta_result_summary object.
+     *
+     * @param string $jsonstring JSON that includes timestamp, globalstacktrace, competency profiles, and results.
+     * @return dta_result_summary
+     */
+    public static function assignsubmission_dta_decode_json(string $jsonstring): dta_result_summary {
+        $response = json_decode($jsonstring);
+
+        $summary = new dta_result_summary();
+        $summary->timestamp = $response->timestamp ?? 0;
+        $summary->globalstacktrace = $response->globalstacktrace ?? '';
+
+        // If your JSON keys are 'successfulTestCompetencyProfile' and 'overallTestCompetencyProfile'.
+        $summary->successfultestcompetencies = $response->successfulTestCompetencyProfile ?? '';
+        $summary->overalltestcompetencies = $response->overallTestCompetencyProfile ?? '';
+
+        // Decode the "results" array into an array of dta_result objects.
+        if (!empty($response->results) && is_array($response->results)) {
+            $summary->results = self::assignsubmission_dta_decode_json_result_array($response->results);
+        } else {
+            $summary->results = [];
+        }
+
+        return $summary;
+    }
+
+    /**
+     * Helper that transforms a list of JSON objects into an array of dta_result objects.
+     *
+     * @param array $jsonarray Array of JSON-decoded result objects.
+     * @return dta_result[]
+     */
+    private static function assignsubmission_dta_decode_json_result_array(array $jsonarray): array {
+        $ret = [];
+        foreach ($jsonarray as $entry) {
+            $value = new dta_result();
+
+            $value->packagename   = $entry->packageName ?? '';
+            $value->classname     = $entry->className ?? '';
+            $value->name          = $entry->name ?? '';
+            $value->state         = $entry->state ?? 0;
+            $value->failuretype   = $entry->failureType ?? '';
+            $value->failurereason = $entry->failureReason ?? '';
+            $value->stacktrace    = $entry->stacktrace ?? '';
+            $value->columnnumber  = $entry->columnNumber ?? 0;
+            $value->linenumber    = $entry->lineNumber ?? 0;
+            $value->position      = $entry->position ?? 0;
+
+            $ret[] = $value;
+        }
+        return $ret;
+    }
+
+    /**
+     * Get the total number of results (tests) recorded in this summary.
+     *
+     * @return int
+     */
+    public function assignsubmission_dta_result_count(): int {
+        return count($this->results);
+    }
+
+    /**
+     * Generic helper to count how many results have the given $state.
+     *
+     * States can be:
+     *  0 => unknown
+     *  1 => success
+     *  2 => fail
+     *  3 => compilation error
+     *
+     * @param int $state The numeric state code to match.
+     * @return int Number of results with that state.
+     */
+    public function assignsubmission_dta_state_occurence_count(int $state): int {
+        $num = 0;
+        foreach ($this->results as $r) {
+            if ((int)$r->state === $state) {
+                $num++;
+            }
+        }
+        return $num;
+    }
+
+    /**
+     * Count how many results had compilation errors (state=3).
+     *
+     * @return int
+     */
+    public function assignsubmission_dta_compilation_error_count(): int {
+        return $this->assignsubmission_dta_state_occurence_count(3);
+    }
+
+    /**
+     * Count how many results failed (state=2).
+     *
+     * @return int
+     */
+    public function assignsubmission_dta_failed_count(): int {
+        return $this->assignsubmission_dta_state_occurence_count(2);
+    }
+
+    /**
+     * Count how many results were successful (state=1).
+     *
+     * @return int
+     */
+    public function assignsubmission_dta_successful_count(): int {
+        return $this->assignsubmission_dta_state_occurence_count(1);
+    }
+
+    /**
+     * Count how many results are unknown (state=0).
+     *
+     * @return int
+     */
+    public function assignsubmission_dta_unknown_count(): int {
+        return $this->assignsubmission_dta_state_occurence_count(0);
+    }
+
+    /**
+     * Computes the success rate as a percentage of all results (0..100).
+     * Note: This includes tests that might have compile errors or unknown states.
+     *
+     * @return float A floating percentage between 0.0 and 100.0.
+     */
+    public function assignsubmission_dta_success_rate(): float {
+        $count = $this->assignsubmission_dta_result_count();
+        if ($count === 0) {
+            return 0.0;
+        }
+        $successful = $this->assignsubmission_dta_successful_count();
+        return ($successful / $count) * 100.0;
+    }
+}

dta/classes/privacy/provider.php

+<?php
+// This file is part of Moodle - http://moodle.org/
+//
+// Moodle is free software: you can redistribute it and/or modify
+// it under the terms of the GNU General Public License as published by
+// the Free Software Foundation, either version 3 of the License, or
+// (at your option) any later version.
+//
+// Moodle is distributed in the hope that it will be useful,
+// but WITHOUT ANY WARRANTY; without even the implied warranty of
+// MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
+// GNU General Public License for more details.
+//
+// You should have received a copy of the GNU General Public License
+// along with Moodle.  If not, see <http://www.gnu.org/licenses/>.
+
+namespace assignsubmission_dta\privacy;
+
+use assign_submission_dta;
+use assignsubmission_dta\dta_db_utils;
+use core_privacy\local\metadata\collection;
+use core_privacy\local\request\writer;
+use core_privacy\local\request\contextlist;
+use mod_assign\privacy\assign_plugin_request_data;
+
+/**
+ * provider for data privacy
+ *
+ * @package assignsubmission_dta
+ * @license   http://www.gnu.org/copyleft/gpl.html GNU GPL v3 or later
+ * @copyright Gero Lueckemeyer and student project teams
+ */
+class provider implements \core_privacy\local\metadata\provider,
+        \mod_assign\privacy\assignsubmission_provider,
+        \mod_assign\privacy\assignsubmission_user_provider {
+
+    /**
+     * File area for dta submission assignment.
+     */
+    const ASSIGNSUBMISSION_DTA_FILEAREA_SUBMISSION = "submissions_dta";
+
+    /**
+     * This is the metadata information for the assignsubmission_dta plugin.
+     * @param collection $collection the collection of metadata filled by the plugin
+     */
+    public static function get_metadata(collection $collection): collection {
+        $collection->add_subsystem_link(
+            'core_files',
+            [],
+            'privacy:metadata:core_files'
+        );
+
+        $collection->add_database_table(
+            'assignsubmission_dta_summary',
+            [
+                'assignmentid' => 'privacy:metadata:assignsubmission_dta_summary:assignmentid',
+                'submissionid' => 'privacy:metadata:assignsubmission_dta_summary:submissionid',
+                'timestamp' => 'privacy:metadata:assignsubmission_dta_summary:timestamp',
+                'global_stacktrace' => 'privacy:metadata:assignsubmission_dta_summary:global_stacktrace',
+                'successful_competencies' => 'privacy:metadata:assignsubmission_dta_summary:successful_competencies',
+                'tested_competencies' => 'privacy:metadata:assignsubmission_dta_summary:tested_competencies',
+
+            ],
+            'privacy:metadata:assignsubmission_dta_summary'
+        );
+
+        $collection->add_database_table(
+            'assignsubmission_dta_result',
+            [
+                'assignmentid' => 'privacy:metadata:assignsubmission_dta_summary:assignmentid',
+                'submissionid' => 'privacy:metadata:assignsubmission_dta_summary:submissionid',
+                'package_name' => 'privacy:metadata:assignsubmission_dta_result:package_name',
+                'class_name' => 'privacy:metadata:assignsubmission_dta_result:class_name',
+                'name' => 'privacy:metadata:assignsubmission_dta_result:name',
+                'state' => 'privacy:metadata:assignsubmission_dta_result:state',
+                'failure_type' => 'privacy:metadata:assignsubmission_dta_result:failure_type',
+                'failure_reason' => 'privacy:metadata:assignsubmission_dta_result:failure_reason',
+                'stacktrace' => 'privacy:metadata:assignsubmission_dta_result:stacktrace',
+                'column_number' => 'privacy:metadata:assignsubmission_dta_result:column_number',
+                'line_number' => 'privacy:metadata:assignsubmission_dta_result:line_number',
+                'position' => 'privacy:metadata:assignsubmission_dta_result:position',
+            ],
+            'privacy:metadata:assignsubmission_dta_result'
+        );
+
+        $collection->add_database_table(
+            'assignsubmission_dta_recommendations',
+            [
+                'assignmentid' => 'privacy:metadata:assignsubmission_dta_summary:assignmentid',
+                'submissionid' => 'privacy:metadata:assignsubmission_dta_summary:submissionid',
+                'topic' => 'privacy:metadata:assignsubmission_dta_recommendations:topic',
+                'exercise_name' => 'privacy:metadata:assignsubmission_dta_recommendations:exercise_name',
+                'url' => 'privacy:metadata:assignsubmission_dta_recommendations:url',
+                'difficulty' => 'privacy:metadata:assignsubmission_dta_recommendations:difficulty',
+                'score' => 'privacy:metadata:assignsubmission_dta_recommendations:score',
+            ],
+            'privacy:metadata:assignsubmission_dta_recommendations'
+        );
+
+        $collection->add_external_location_link('dta_backend', [
+                'assignmentid' => 'privacy:metadata:assignsubmission_dta_summary:assignmentid',
+                'submissionid' => 'privacy:metadata:assignsubmission_dta_summary:submissionid',
+                'submissioncontent' => 'privacy:metadata:core_files',
+            ],
+            'privacy:metadata:dta_backend'
+        );
+
+        return $collection;
+    }
+
+    /**
+     * This is covered by mod_assign provider and the query on assign_submissions.
+     *
+     * @param  int $userid The user ID that we are finding contexts for.
+     * @param  contextlist $contextlist A context list to add sql and params to for contexts.
+     */
+    public static function get_context_for_userid_within_submission(int $userid, contextlist $contextlist) {
+        // This is already fetched from mod_assign.
+    }
+
+    /**
+     * This is also covered by the mod_assign provider and its queries.
+     *
+     * @param  \mod_assign\privacy\useridlist $useridlist An object for obtaining user IDs of students.
+     */
+    public static function get_student_user_ids(\mod_assign\privacy\useridlist $useridlist) {
+        // This is already fetched from mod_assign.
+    }
+
+    /**
+     * If you have tables that contain userids and you can generate entries in your tables without creating an
+     * entry in the assign_submission table then please fill in this method.
+     *
+     * @param  userlist $userlist The userlist object
+     */
+    public static function get_userids_from_context(\core_privacy\local\request\userlist $userlist) {
+        // Not required.
+    }
+
+    /**
+     * Export all user data for this plugin.
+     *
+     * @param  assign_plugin_request_data $exportdata Data used to determine which context and user to export and other useful
+     * information to help with exporting.
+     */
+    public static function export_submission_user_data(assign_plugin_request_data $exportdata) {
+        // We currently don't show submissions to teachers when exporting their data.
+        $context = $exportdata->get_context();
+        if ($exportdata->get_user() != null) {
+            return null;
+        }
+        $user = new \stdClass();
+        $assign = $exportdata->get_assign();
+        $submission = $exportdata->get_pluginobject();
+        $files = get_files($submission, $user);
+        foreach ($files as $file) {
+            $userid = $exportdata->get_pluginobject()->userid;
+            $dtaresultsummary = dta_db_utils::dta_get_result_summary_from_database($assign->id, $submission->id);
+            // Submitted file.
+            writer::with_context($exportdata->get_context())->export_file($exportdata->get_subcontext(), $file)
+            // DTA result.
+            ->export_related_data($dtaresultsummary);
+
+            // Plagiarism data.
+            $coursecontext = $context->get_course_context();
+            \core_plagiarism\privacy\provider::export_plagiarism_user_data($userid, $context, $exportdata->get_subcontext(), [
+                'cmid' => $context->instanceid,
+                'course' => $coursecontext->instanceid,
+                'userid' => $userid,
+                'file' => $file,
+            ]);
+        }
+    }
+
+    /**
+     * Any call to this method should delete all user data for the context defined in the deletion_criteria.
+     *
+     * @param  assign_plugin_request_data $requestdata Information useful for deleting user data.
+     */
+    public static function delete_submission_for_context(assign_plugin_request_data $requestdata) {
+        global $DB;
+
+        \core_plagiarism\privacy\provider::delete_plagiarism_for_context($requestdata->get_context());
+
+        $fs = get_file_storage();
+        $fs->delete_area_files($requestdata->get_context()->id, 'assignsubmission_dta', ASSIGNSUBMISSION_DTA_FILEAREA_SUBMISSION);
+
+        $assignmentid = $requestdata->get_assign()->get_instance()->id;
+
+        // Delete records from assignsubmission_dta tables.
+        $DB->delete_records('assignsubmission_dta_result', ['assignmentid' => $assignmentid]);
+        $DB->delete_records('assignsubmission_dta_summary', ['assignmentid' => $assignmentid]);
+        $DB->delete_records('assignsubmission_dta_recommendations', ['assignmentid' => $assignmentid]);
+
+    }
+
+    /**
+     * A call to this method should delete user data (where practical) using the userid and submission.
+     *
+     * @param  assign_plugin_request_data $deletedata Details about the user and context to focus the deletion.
+     */
+    public static function delete_submission_for_userid(assign_plugin_request_data $deletedata) {
+        global $DB;
+
+        \core_plagiarism\privacy\provider::delete_plagiarism_for_user($deletedata->get_user()->id, $deletedata->get_context());
+
+        $assignmentid = $deletedata->get_assign()->get_instance()->id;
+        $submissionid = $deletedata->get_pluginobject()->id;
+
+        $fs = get_file_storage();
+        $fs->delete_area_files($deletedata->get_context()->id, 'assignsubmission_dta', ASSIGNSUBMISSION_DTA_FILEAREA_SUBMISSION,
+                $submissionid);
+
+        // Delete records from assignsubmission_dta tables. Also possible with a list as below.
+        $DB->delete_records('assignsubmission_dta_result', [
+            'assignmentid' => $assignmentid,
+            'submissionid' => $submissionid,
+            ]);
+        $DB->delete_records('assignsubmission_dta_summary', [
+            'assignmentid' => $assignmentid,
+            'submissionid' => $submissionid,
+            ]);
+            $DB->delete_records('assignsubmission_dta_recommendations', [
+                'assignmentid' => $assignmentid,
+                'submissionid' => $submissionid,
+            ]);
+    }
+
+    /**
+     * Deletes all submissions for the submission ids / userids provided in a context.
+     * assign_plugin_request_data contains:
+     * - context
+     * - assign object
+     * - submission ids (pluginids)
+     * - user ids
+     * @param  assign_plugin_request_data $deletedata A class that contains the relevant information required for deletion.
+     */
+    public static function delete_submissions(assign_plugin_request_data $deletedata) {
+        global $DB;
+
+        \core_plagiarism\privacy\provider::delete_plagiarism_for_users($deletedata->get_userids(), $deletedata->get_context());
+
+        if (empty($deletedata->get_submissionids())) {
+            return;
+        }
+        $fs = get_file_storage();
+        list($sql, $params) = $DB->get_in_or_equal($deletedata->get_submissionids(), SQL_PARAMS_NAMED);
+        $fs->delete_area_files_select($deletedata->get_context()->id, 'assignsubmission_file', ASSIGNSUBMISSION_FILE_FILEAREA,
+                $sql, $params);
+
+        $params['assignid'] = $deletedata->get_assignid();
+        $DB->delete_records_select('assignsubmission_dta_result', "assignmentid = :assignid AND submissionid $sql", $params);
+        $DB->delete_records_select('assignsubmission_dta_summary', "assignmentid = :assignid AND submissionid $sql", $params);
+        $DB->delete_records_select('assignsubmission_dta_recommendations', "assignmentid = :assignid AND submissionid $sql", $params);
+    }
+
+    /**
+     * Produce a list of files suitable for export that represent this feedback or submission
+     *
+     * @param stdClass $submission The submission
+     * @param stdClass $user The user record - unused
+     * @return array - return an array of files indexed by filename
+     */
+    public function get_files(stdClass $submission, stdClass $user) {
+        $result = [];
+        $fs = get_file_storage();
+
+        $files = $fs->get_area_files($this->assignment->get_context()->id,
+                                     'assignsubmission_file',
+                                     ASSIGNSUBMISSION_DTA_FILEAREA_SUBMISSION,
+                                     $submission->id,
+                                     'timemodified',
+                                     false);
+
+        foreach ($files as $file) {
+            // Do we return the full folder path or just the file name?
+            if (isset($submission->exportfullpath) && $submission->exportfullpath == false) {
+                $result[$file->get_filename()] = $file;
+            } else {
+                $result[$file->get_filepath().$file->get_filename()] = $file;
+            }
+        }
+        return $result;
+    }
+
+}

dta/classes/dta_backend_utils.php

+<?php
+// This file is part of Moodle - http://moodle.org/.
+//
+// Moodle is free software: you can redistribute it and/or modify
+// it under the terms of the GNU General Public License as published by
+// the Free Software Foundation, either version 3 of the License, or
+// (at your option) any later version.
+//
+// Moodle is distributed in the hope that it will be useful,
+// but WITHOUT ANY WARRANTY; without even the implied warranty of
+// MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
+// GNU General Public License for more details.
+//
+// You should have received a copy of the GNU General Public License
+// along with Moodle.  If not, see <http://www.gnu.org/licenses/>.
+
+/**
+ * This file contains the backend webservice contact functionality for the DTA plugin.
+ *
+ * @package   assignsubmission_dta
+ * @copyright 2023 Your Name
+ * @license   http://www.gnu.org/copyleft/gpl.html GNU GPL v3 or later
+ */
+
+namespace assignsubmission_dta;
+
+/**
+ * Backend webservice contact utility class.
+ *
+ * @package   assignsubmission_dta
+ * @copyright 2023 Your Name
+ * @license   http://www.gnu.org/copyleft/gpl.html GNU GPL v3 or later
+ */
+class dta_backend_utils {
+
+    /**
+     * Component name for the plugin.
+     */
+    public const ASSIGNSUBMISSION_DTA_COMPONENT_NAME = 'assignsubmission_dta';
+
+    /**

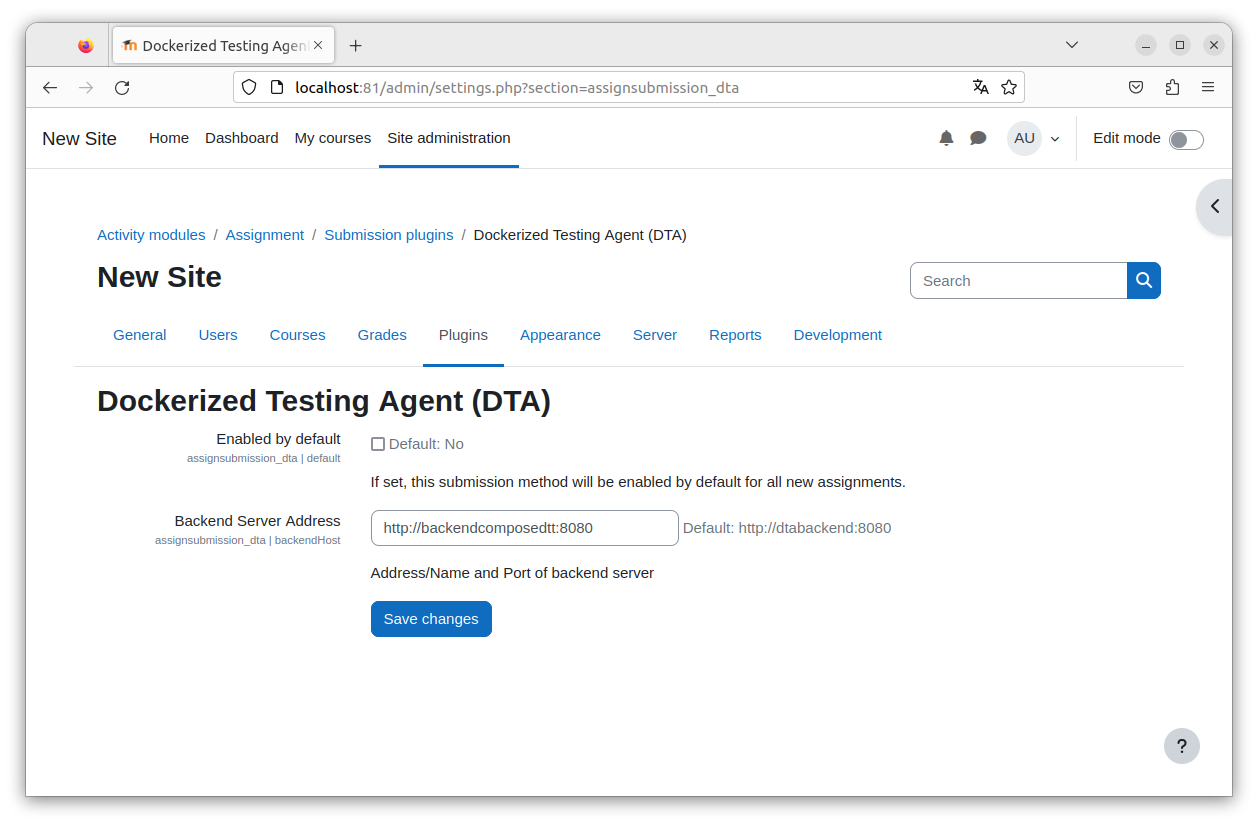

+     * Returns the base URL of the backend webservice as configured in the administration settings.
+     *
+     * @return string Backend host base URL.
+     */
+    private static function assignsubmission_dta_get_backend_baseurl(): string {
+        $backendaddress = get_config(
+            self::ASSIGNSUBMISSION_DTA_COMPONENT_NAME,
+            'backendHost'
+        );
+
+        if (empty($backendaddress)) {
+            \core\notification::error(
+                get_string('backendHost_not_set', self::ASSIGNSUBMISSION_DTA_COMPONENT_NAME)
+            );
+        }
+
+        return $backendaddress;
+    }
+
+    /**

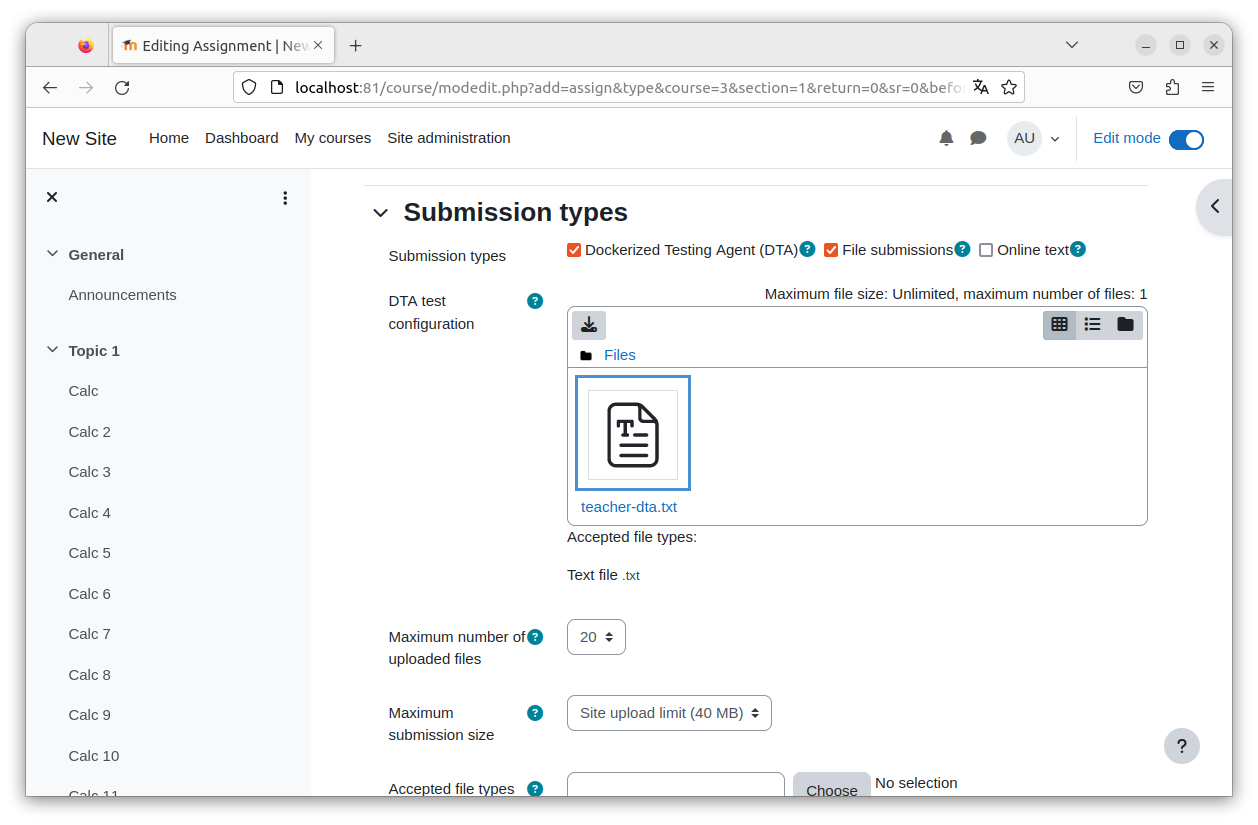

+     * Sends the configuration text file uploaded by the teacher to the backend.
+     *
+     * @param \assign $assignment Assignment this test-config belongs to.
+     * @param \stored_file $file Uploaded test-config.
+     * @return bool True if no error occurred.
+     */
+    public static function assignsubmission_dta_send_testconfig_to_backend($assignment, $file): bool {
+        $backendaddress = self::assignsubmission_dta_get_backend_baseurl();
+        if (empty($backendaddress)) {
+            return true;
+        }
+
+        // Set endpoint for test upload.
+        $url = $backendaddress . '/v1/unittest';
+
+        // Prepare params.
+        $params = [
+            'unitTestFile' => $file,
+            'assignmentId' => $assignment->get_instance()->id,
+        ];
+
+        // If request returned null, return false to indicate failure.
+        if (is_null(self::assignsubmission_dta_post($url, $params))) {
+            return false;
+        } else {
+            return true;
+        }
+    }
+
+    /**

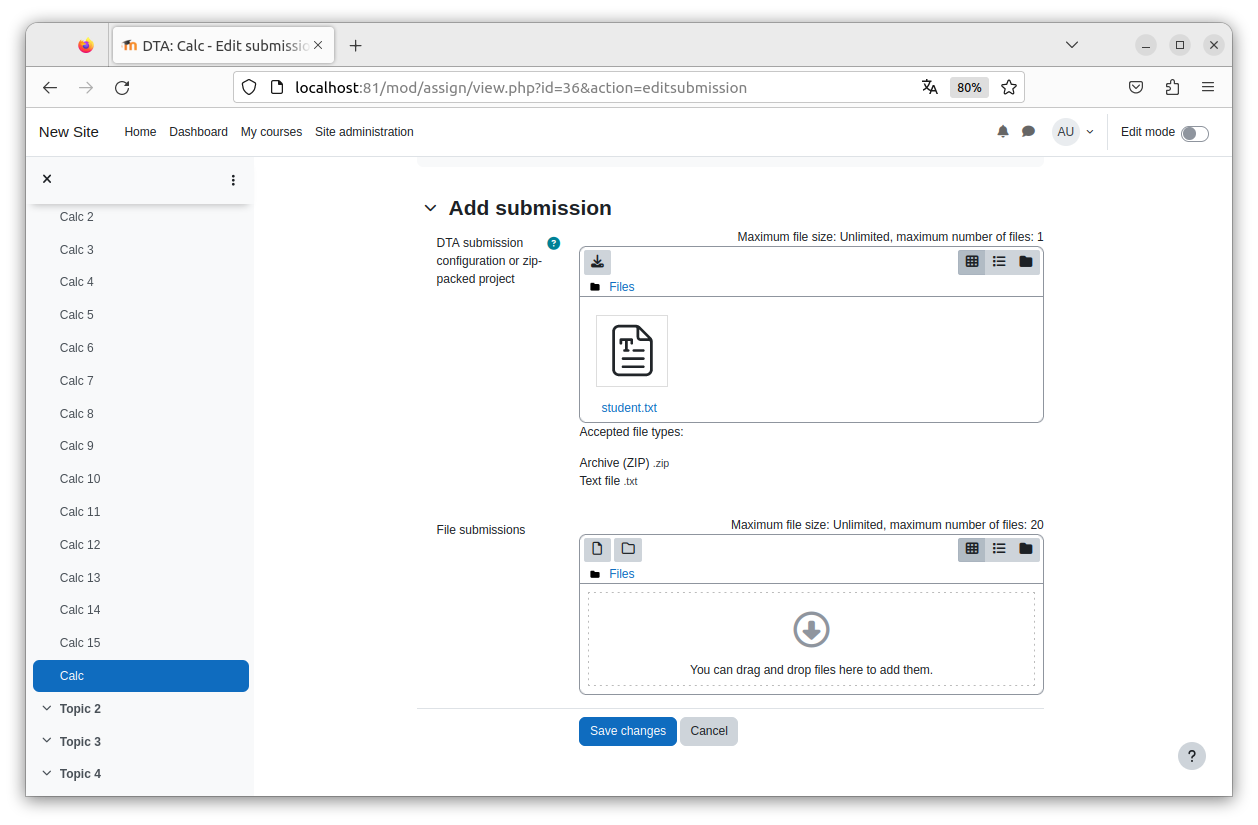

+     * Sends submission config or archive to backend to be tested.
+     *
+     * @param \assign $assignment Assignment for the submission.
+     * @param int $submissionid Submission ID of the current file.
+     * @param \stored_file $file Submission config file or archive with submission.
+     * @return string|null JSON string with test results or null on error.
+     */
+    public static function assignsubmission_dta_send_submission_to_backend(
+        $assignment,
+        int $submissionid,
+        $file
+    ): ?string {
+        $backendaddress = self::assignsubmission_dta_get_backend_baseurl();
+        if (empty($backendaddress)) {
+            return null;
+        }
+
+        // Set endpoint for submission upload.
+        $url = $backendaddress . '/v1/task/' . $submissionid;
+
+        // Prepare params.
+        $params = [
+            'taskFile' => $file,
+            'assignmentId' => $assignment->get_instance()->id,
+        ];
+
+        return self::assignsubmission_dta_post($url, $params);
+    }
+
+    /**
+     * Posts the given params to the given URL and returns the response as a string.
+     *
+     * @param string $url Full URL to request.
+     * @param array $params Parameters for HTTP request.
+     * @return string|null Received body on success or null on error.
+     */
+    private static function assignsubmission_dta_post(string $url, array $params): ?string {
+        if (!isset($url) || !isset($params)) {
+            return null;
+        }
+
+        $options = ['CURLOPT_RETURNTRANSFER' => true];
+
+        $curl = new \curl();
+        $response = $curl->post($url, $params, $options);
+
+        // Check state of request, if response code is 2xx, return the answer.
+        $info = $curl->get_info();
+        if ($info['http_code'] >= 200 && $info['http_code'] < 300) {
+            return $response;
+        }
+
+        // Something went wrong, return null and display an error message.
+        $msg = self::ASSIGNSUBMISSION_DTA_COMPONENT_NAME
+            . ': Post file to server was not successful. HTTP code='
+            . $info['http_code'];
+        debugging($msg);
+
+        if ($info['http_code'] >= 400 && $info['http_code'] < 500) {
+            \core\notification::error(
+                get_string('http_client_error_msg', self::ASSIGNSUBMISSION_DTA_COMPONENT_NAME)
+            );
+            return null;
+        } else if ($info['http_code'] >= 500 && $info['http_code'] < 600) {
+            \core\notification::error(
+                get_string('http_server_error_msg', self::ASSIGNSUBMISSION_DTA_COMPONENT_NAME)
+            );
+            return null;
+        } else {
+            $unknownmsg = get_string('http_unknown_error_msg', self::ASSIGNSUBMISSION_DTA_COMPONENT_NAME)
+                . $info['http_code'] . ' ' . $response;
+            \core\notification::error($unknownmsg);
+            return null;
+        }
+    }
+}

dta/classes/dta_db_utils.php

+<?php
+// This file is part of Moodle - http://moodle.org/
+//
+// Moodle is free software: you can redistribute it and/or modify
+// it under the terms of the GNU General Public License as published by
+// the Free Software Foundation, either version 3 of the License, or
+// (at your option) any later version.
+//
+// Moodle is distributed in the hope that it will be useful,
+// but WITHOUT ANY WARRANTY; without even the implied warranty of
+// MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
+// GNU General Public License for more details.
+//
+// You should have received a copy of the GNU General Public License
+// along with Moodle.  If not, see <http://www.gnu.org/licenses/>.
+
+namespace assignsubmission_dta;
+
+use assignsubmission_dta\dta_backend_utils;
+use assignsubmission_dta\dta_view_submission_utils;
+use assignsubmission_dta\models\dta_result;
+use assignsubmission_dta\models\dta_result_summary;
+use assignsubmission_dta\models\dta_recommendation;
+
+/**
+ * Class dta_db_utils
+ *
+ * Persistence layer utility class for storing and retrieving
+ * DTA plugin data (results, summaries, recommendations).
+ *
+ * @package    assignsubmission_dta
+ * @copyright  2023 Gero Lueckemeyer
+ * @license    http://www.gnu.org/copyleft/gpl.html GNU GPL v3 or later
+ */
+class dta_db_utils {
+
+    /**
+     * Summary database table name.
+     */
+    private const ASSIGNSUBMISSION_DTA_TABLE_SUMMARY = 'assignsubmission_dta_summary';
+
+    /**
+     * Result database table name.
+     */
+    private const ASSIGNSUBMISSION_DTA_TABLE_RESULT = 'assignsubmission_dta_result';
+
+    /**
+     * Recommendations database table name.
+     */
+    private const ASSIGNSUBMISSION_DTA_TABLE_RECOMMENDATIONS = 'assignsubmission_dta_recommendations';
+
+    /**
+     * Returns an array of recommendations from the database.
+     *
+     * @param int $assignmentid The assignment ID.
+     * @param int $submissionid The submission ID.
+     * @return array An array of recommendation records.
+     */
+    public static function assignsubmission_dta_get_recommendations_from_database(
+        int $assignmentid,
+        int $submissionid
+    ): array {
+        global $DB, $USER;
+        $userid = $USER->id;
+
+        // Step 1: Retrieve all recommendations.
+        $records = $DB->get_records(
+            self::ASSIGNSUBMISSION_DTA_TABLE_RECOMMENDATIONS,
+            [
+                'assignment_id' => $assignmentid,
+                'submission_id' => $submissionid,
+            ]
+        );
+
+        // Step 2: Retrieve module ID for 'assign'.
+        $module = $DB->get_record('modules', ['name' => 'assign'], 'id');
+        if (!$module) {
+            // Handle error case if the module is not found.
+            return $records;
+        }
+        $moduleid = $module->id;
+
+        // Step 3: Check each record.
+        foreach ($records as $key => $record) {
+            // Get the name of the exercise from the record.
+            $exercisename = $record->exercise_name;
+
+            // Find the assignment with this name.
+            $assign = $DB->get_record('assign', ['name' => $exercisename], 'id');
+            if ($assign) {
+                // Get the course module ID for this assignment.
+                $cm = $DB->get_record(
+                    'course_modules',
+                    [
+                        'module'   => $moduleid,
+                        'instance' => $assign->id,
+                    ],
+                    'id'
+                );
+
+                if ($cm) {
+                    // Check the completion status for this course module and user.
+                    $completion = $DB->get_record(
+                        'course_modules_completion',
+                        [
+                            'coursemoduleid' => $cm->id,
+                            'userid' => $userid,
+                        ],
+                        'completionstate'
+                    );
+
+                    // If the completion state is 1, remove the record from $records.
+                    if ($completion && (int)$completion->completionstate === 1) {
+                        unset($records[$key]);
+                    }
+                }
+            }
+        }
+
+        // Return the filtered records.
+        return $records;
+    }
+
+    /**
+     * Gets a summary with all corresponding result entries.
+     *
+     * @param int $assignmentid Assignment ID to search for.
+     * @param int $submissionid Submission ID to search for.
+     * @return dta_result_summary Summary representing the submission.
+     */
+    public static function assignsubmission_dta_get_result_summary_from_database(
+        int $assignmentid,
+        int $submissionid
+    ): dta_result_summary {
+        global $DB;
+
+        // Fetch data from database.
+        $summaryrecord = $DB->get_record(
+            self::ASSIGNSUBMISSION_DTA_TABLE_SUMMARY,
+            [
+                'assignment_id' => $assignmentid,
+                'submission_id' => $submissionid,
+            ]
+        );
+
+        $resultsarray = $DB->get_records(
+            self::ASSIGNSUBMISSION_DTA_TABLE_RESULT,
+            [
+                'assignment_id' => $assignmentid,
+                'submission_id' => $submissionid,
+            ]
+        );
+
+        // Create a summary instance.
+        $summary = new dta_result_summary();
+        $summary->timestamp = $summaryrecord->timestamp;
+        $summary->globalstacktrace = $summaryrecord->global_stacktrace;
+        $summary->successfultestcompetencies = $summaryrecord->successful_competencies;
+        $summary->overalltestcompetencies = $summaryrecord->tested_competencies;
+        $summary->results = [];
+
+        // Create result instances and add to array of summary instance.
+        foreach ($resultsarray as $rr) {
+            $result = new dta_result();
+            $result->packagename = $rr->package_name;
+            $result->classname = $rr->class_name;
+            $result->name = $rr->name;
+            $result->state = $rr->state;
+            $result->failuretype = $rr->failure_type;
+            $result->failurereason = $rr->failure_reason;
+            $result->stacktrace = $rr->stacktrace;
+            $result->columnnumber = $rr->column_number;
+            $result->linenumber = $rr->line_number;
+            $result->position = $rr->position;
+
+            $summary->results[] = $result;
+
+        }
+
+        return $summary;
+    }
+
+    /**
+     * Stores an array of recommendations in the database.
+     *
+     * @param int $assignmentid The assignment ID.
+     * @param int $submissionid The submission ID.
+     * @param array $recommendations An array of dta_recommendation objects.
+     */
+    public static function assignsubmission_dta_store_recommendations_to_database(
+        int $assignmentid,
+        int $submissionid,
+        array $recommendations
+    ): void {
+        global $DB;
+
+        // Debug output (you can remove or adapt this if unneeded).
+        debugging('Recommendations array: ' . json_encode($recommendations));
+
+        // If recommendations already exist, delete old values beforehand.
+        $existingrecords = $DB->get_records(
+            'assignsubmission_dta_recommendations',
+            [
+                'assignment_id' => $assignmentid,
+                'submission_id' => $submissionid,
+            ]
+        );
+
+        if ($existingrecords) {
+            $DB->delete_records(
+                'assignsubmission_dta_recommendations',
+                [
+                    'assignment_id' => $assignmentid,
+                    'submission_id' => $submissionid,
+                ]
+            );
+        }
+
+        // Create new recommendation entries.
+        foreach ($recommendations as $recommendation) {
+            // Check if $recommendation is an instance of dta_recommendation.
+            if ($recommendation instanceof dta_recommendation) {
+                // Add assignment and submission IDs to the recommendation object.
+                $recommendation->assignment_id = $assignmentid;
+                $recommendation->submission_id = $submissionid;
+
+                debugging('Inserting new recommendation record: ' . json_encode($recommendation));
+
+                // Insert the recommendation into the database.
+                $DB->insert_record('assignsubmission_dta_recommendations', $recommendation);
+            } else {
+                // Handle the case where $recommendation is not a dta_recommendation instance.
+                debugging('Invalid recommendation object encountered.');
+            }
+        }
+    }
+
+    /**
+     * Saves the given result summary and single results to the database
+     * under the specified assignment and submission ID.
+     *
+     * @param int $assignmentid Assignment this submission is linked to.
+     * @param int $submissionid Submission ID for these results.
+     * @param dta_result_summary $summary Summary instance to persist.
+     */
+    public static function assignsubmission_dta_store_result_summary_to_database(
+        int $assignmentid,
+        int $submissionid,
+        dta_result_summary $summary
+    ): void {
+        global $DB;
+
+        // Prepare new database entries.
+        $summaryrecord = new dta_result_summary();
+        $summaryrecord->assignment_id = $assignmentid;
+        $summaryrecord->submission_id = $submissionid;
+        $summaryrecord->timestamp = $summary->timestamp;
+        $summaryrecord->global_stacktrace = $summary->globalstacktrace;
+        $summaryrecord->successful_competencies = $summary->successfultestcompetencies;
+        $summaryrecord->tested_competencies = $summary->overalltestcompetencies;
+
+        // Prepare results to persist.
+        $resultrecords = [];
+        foreach ($summary->results as $r) {
+            $record = new dta_result();
+            $record->assignment_id = $assignmentid;
+            $record->submission_id = $submissionid;
+            $record->package_name = $r->packagename;
+            $record->class_name = $r->classname;
+            $record->name = $r->name;
+            $record->state = $r->state;
+            $record->failure_type = $r->failuretype;
+            $record->failure_reason = $r->failurereason;
+            $record->stacktrace = $r->stacktrace;
+            $record->column_number = $r->columnnumber;
+            $record->line_number = $r->linenumber;
+            $record->position = $r->position;
+            $resultrecords[] = $record;
+        }
+
+        // If results already exist, delete old values beforehand.
+        $submission = $DB->get_record(
+            self::ASSIGNSUBMISSION_DTA_TABLE_SUMMARY,
+            [
+                'assignment_id' => $assignmentid,
+                'submission_id' => $submissionid,
+            ]
+        );
+
+        if ($submission) {
+            $DB->delete_records(
+                self::ASSIGNSUBMISSION_DTA_TABLE_RESULT,
+                [
+                    'assignment_id' => $assignmentid,
+                    'submission_id' => $submissionid,
+                ]
+            );
+
+            $DB->delete_records(
+                self::ASSIGNSUBMISSION_DTA_TABLE_SUMMARY,
+                [
+                    'assignment_id' => $assignmentid,
+                    'submission_id' => $submissionid,
+                ]
+            );
+        }
+
+        // Create summary and single result entries.
+        $DB->insert_record(self::ASSIGNSUBMISSION_DTA_TABLE_SUMMARY, $summaryrecord);
+        foreach ($resultrecords as $rr) {
+            $DB->insert_record(self::ASSIGNSUBMISSION_DTA_TABLE_RESULT, $rr);
+        }
+    }
+
+    /**

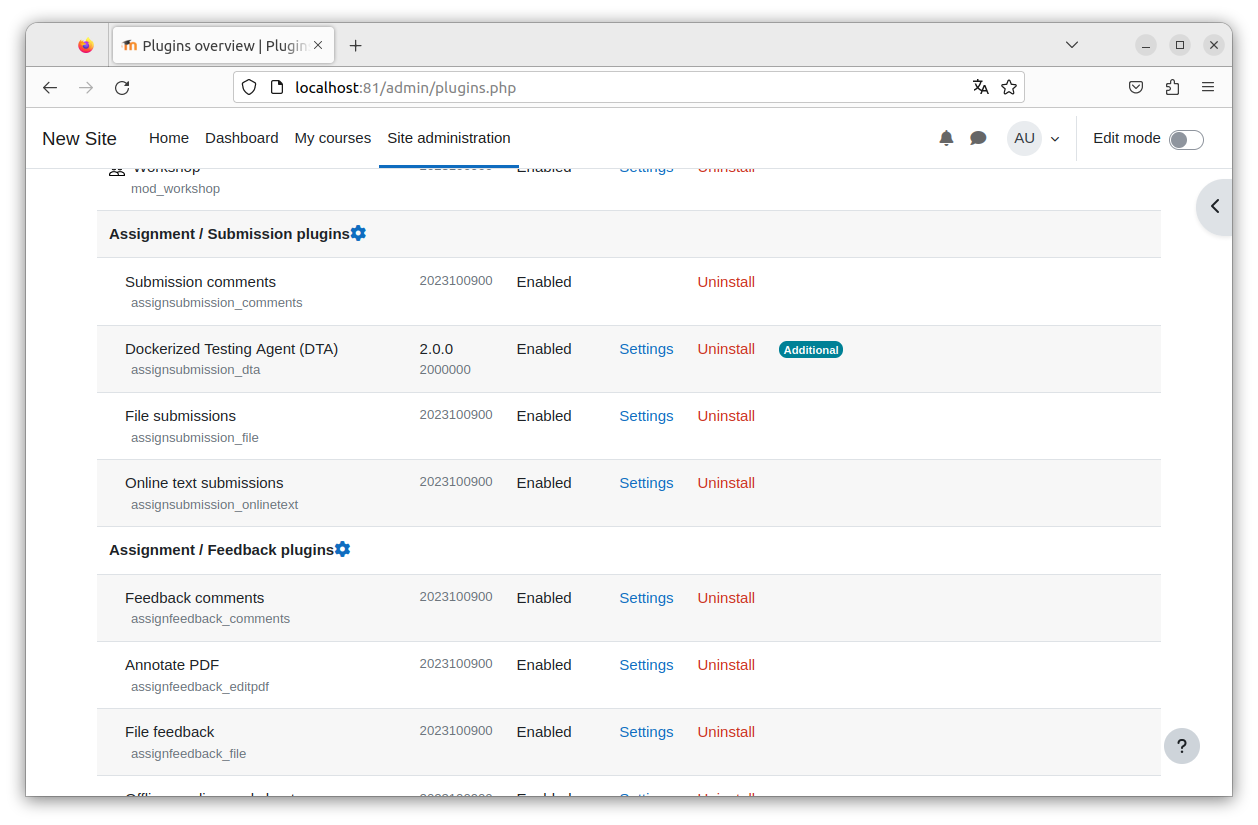

+     * Cleans up database if plugin is uninstalled.
+     */
+    public static function assignsubmission_dta_uninstall_plugin_cleaup(): void {
+        global $DB;
+
+        $DB->delete_records(self::ASSIGNSUBMISSION_DTA_TABLE_RESULT, null);
+        $DB->delete_records(self::ASSIGNSUBMISSION_DTA_TABLE_SUMMARY, null);
+        $DB->delete_records(self::ASSIGNSUBMISSION_DTA_TABLE_RECOMMENDATIONS, null);
+    }
+}
