R_GE_P_NON_PLANAR#

Requirement#

ID R_GE_P_NON_PLANAR
Description Every polygon must be planar. Planarity is achieved when no point is farther than distanceTolerance from the regression plane of all points, and the normals of every triangle of the tessellated polygon do not have an angular deviation greater than angleTolerance.
Parameter 1: type The type of the planarity check can be selected. Must be one of distance, angle, both.
  • If the parameter is distance: Only the distance check is performed.
  • If the parameter is angle: Only the normal deviation check is performed.
  • If the parameter is both: Both checks are performed.
Parameter 2: distanceTolerance Tolerance of the distance of a point from the regression plane
Parameter 3: angleTolerance Tolerance of the angle of the triangle normals
Error codes GE_P_NON_PLANAR_POLYGON_DISTANCE_PLANE, GE_P_NON_PLANAR_POLYGON_NORMALS_DEVIATION

Normal deviation:
normalDeviation

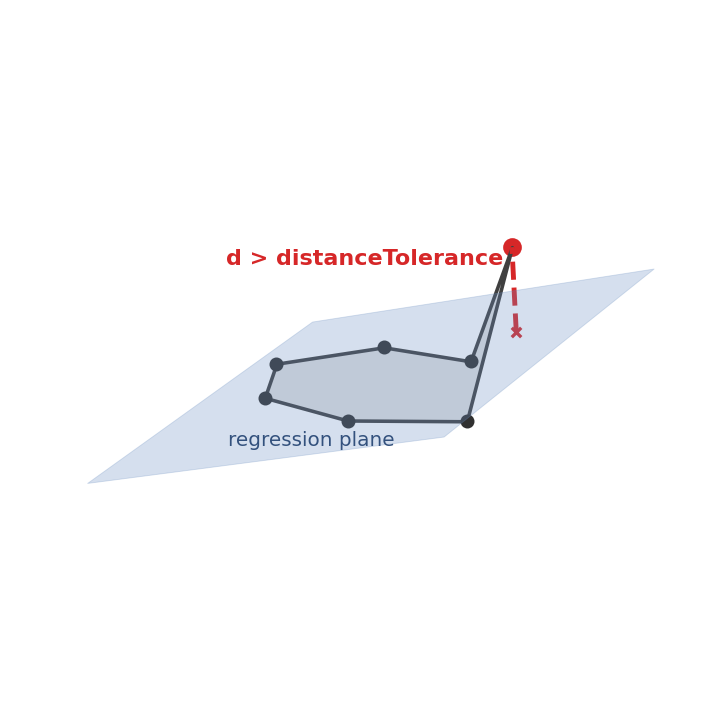

Distance of a point to the regression plane:
nonPlanarDistance

Check#

ID C_GE_P_NON_PLANAR
Requirement ID R_GE_P_NON_PLANAR
Preconditions R_SC_SCHEMA_VALIDATION, R_GE_R_ALL
Description To determine the normal deviation, all polygons are tessellated in order to compute the triangle normals, whose angles are used for the comparison. The tessellation of the polygons is not deterministic, and therefore the result of the normal deviation check is not deterministic.
For the distance check, a regression plane is created from all polygon points in order to compute the distance of the points to this plane.
Error code GE_P_NON_PLANAR_POLYGON_DISTANCE_PLANE, GE_P_NON_PLANAR_POLYGON_NORMALS_DEVIATION

Implementation#

In CityDoctor2 only the distance check is active by default, since the normal check does not produce deterministic results.

Test cases#

Test case ID CityGML model Expected result
GE-gml:PO-0002-T0001 SimpleSolid_SrefBS-GE-gml-PO-0001-T0002.gml OK for this requirement, GE_S_NOT_CLOSED error in later checks
GE-gml:PO-0002-T0002 SimpleSolid_SrefBS-GE-gml-PO-0002-T0001.gml GE_P_NON_PLANAR_POLYGON_DISTANCE_PLANE in _Simple_BD.1_PG.2 with distanceTolerance = 0.01
GE-gml:PO-0002-T0003 SimpleSolid_SrefBS-GE-gml-PO-0002-T0001.gml OK for this requirement with distanceTolerance = 0.5, GE_P_ORIENTATION_RINGS_SAME in later checks
GE-gml:PO-0002-T0004 SimpleSolid_SrefBS-GE-gml-PO-0002-T0002.gml GE_P_NON_PLANAR_POLYGON_NORMALS_DEVIATION in _Simple_BD.1_PG.1 with parameter type = angle
