R_GE_S_SELF_INTERSECTION#
Requirement#
| ID | R_GE_S_SELF_INTERSECTION |
|---|---|
| Description | The solid must not self-intersect |
| Error code | GE_S_SELF_INTERSECTION |

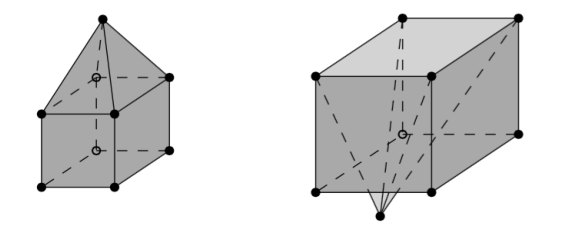

Example (left = OK, right = invalid):
Check#
| ID | C_GE_S_SELF_INTERSECTION |
|---|---|
| Requirement ID | R_GE_S_SELF_INTERSECTION |
| Preconditions | R_SC_SCHEMA_VALIDATION, R_GE_R_ALL, R_GE_P_ALL, GE_S_TOO_FEW_POLYGONS, GE_S_NOT_CLOSED, GE_S_NON_MANIFOLD_VERTEX, GE_S_NON_MANIFOLD_EDGE, GE_S_MULTIPLE_CONNECTED_COMPONENTS, GE_S_POLYGON_WRONG_ORIENTATION |
| Description | |
| Error code | GE_S_SELF_INTERSECTION |
Test cases#
| Test case ID | CityGML model | Expected result |
|---|---|---|
| GE-gml:SO-0006-T0001 | SimpleSolid_SrefBS.gml | OK |
| GE-gml:SO-0006-T0002 | SimpleSolid_SrefBS-GE-gml-SO-0006-T0001.gml | GE_S_SELF_INTERSECTION |
