Project 1 Visualization of heating demand

SimStadt Simulation data

The simulation data of the district Stuttgart Stöckach has been generated by the Simulation platform SimStadt developed at HFT Stuttgart.

GeoJSON Data: https://transfer.hft-stuttgart.de/gitlab/coors/visualization/-/tree/master/Exercise%201/building_data.js

OR

GeoJSON Data: https://ugl.hft-stuttgart.de/leaflet-stoeckach-heatdemand/building_data.json

CSV Data (with same attributes as GeoJSON): https://transfer.hft-stuttgart.de/gitlab/coors/visualization/-/blob/master/Exercise%201/building_data.csv

  • Heating demand per month [kWh] (January_He, February_H, March_Heat, April_Heat, May_Heatin, June_Heati, July_Heati, August_Hea, September_ , October_He, November_H, December_H)
  • Heating demand per year [kWh/a]: summarized monthly values [kWh]
  • Heated area [m²] (Heated_area)
  • Heated volume [m³] (Heated_vol)
  • Year of construction (Year_of_co)
  • Photovoltaic Potential [MWh/a] (PV_potenti)
  • Specific Heating demand [kWh/m^2*a ] will be used to calculate Energy efficiency class (Specific_s)

GeoJSON-Datenset-names

Energy efficiency classes

kWh/m^2*a Energy efficiency class
0-25 A+
26-50 A
51-75 B
76-100 C
101-125 D
126-150 E
151-200 F
201-250 G
>251 H

Color Mapping Energy efficency class

  • Example in 2D using Leaflet and Chart.js

  • Demo Source code - Example in 2D using Leaflet and Chart.js

  • Example in 3D using Cesium and Chart.js

  • Demo Source code - Example in 3D using Cesium and Chart.js

  • Another Example in 3D using Cesium and Apex-charts

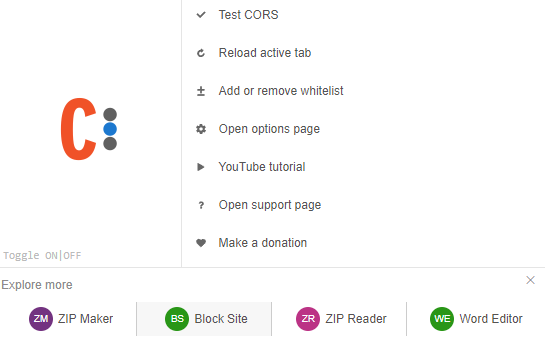

All the above examples are best viewed in Chrome browser. Also please allow CORS in Chrome browser. CORS plugin is downloadable from here. You must install and enable it.
