How to Implement Parameter Catalogs with Eclipse
At the end of this chapter, you should be able to build a running software prototype for creating and maintaining parameter catalogs based on a graphical data model of the domain you are an expert in.
To build data models and parameter catalogs from scratch, we first have to understand some basics about Eclipse, and then install the correct Eclipse package. Thereafter, we can model our data with Ecore considering some best practices, followed by the generation of Java classes and user interface (UI). Finally, we will install some plug-ins to "pimp" our Eclipse installation in order to add units and quantities to the mix.
Eclipse Basics
Eclipse was originally developed by IBM and became Open Source in 2001. It is best known for its Integrated Development Environments (Eclipse IDEs), not only for Java, but also for C++, Python and many other programming languages. These IDEs are created on top of the Eclipse Rich Client Platform (Eclipse RCP), an application framework and plug-in system based on Java and OSGi. Eclipse RCP is foundation of a plethora of general-purpose applications, too.
First time users of Eclipse better understand the following concepts.
An Eclipse package is an Eclipse distribution dedicated to a specific type of task.[1] A list of packages is available at eclipse.org. Beside others it contains Eclipse IDE for Java Developers, Eclipse IDE for Scientific Computing, and Eclipse Modeling Tools. Note that third parties offer many other packages, e.g. GAMA for multi-agent-simulation.
|
Several Eclipse packages can be installed side by side, even different releases of the same package. Multiple Eclipse installations can run at the same time, each on its own workspace (see below). |
An installed Eclipse package consists of a runtime core and a bunch of additional plug-ins. Technically, a plug-in is just a special kind of Java archive (JAR file) that uses and can be used by other plug-ins with regard to OSGi specifications. Groups of plug-ins that belong together are called a feature.
Sometimes, a user will add plug-ins or features to an Eclipse installation to add new capabilities.
E.g. writing this documentation within my Eclipse IDE is facilitated by the plug-in Asciidoctor Editor.
Plug-ins can easily be installed via main menu command Help → Eclipse Marketplace… or Help → Install New Software….
Some plug-ins may be self-made like our City Units plug-in that enables Ecore to deal with physical quantities.
Git is the industry standard for collaborative work on, and versioning of, source code and other textual data. Collaborative development of parameter catalogs benefits massively from using Git. Git support is built into Eclipse Modeling Tools, the Eclipse package we will use. However, if Eclipse needs to connect to a Git server that uses SSH protocol (not HTTPS with credentials), access configuration is more involved and may be dependent on your operating system.
Some users, anyway, prefer to use Git from the command line or with one of the client application listed here, e.g. TortoiseGit for Windows.
While it is required to get Git working at some point, we won’t refer to it in this document and, for now, do not cover the installation of Git on your machine or configuration of Git in Eclipse.
When you start a new Eclipse installation for the first time, you are asked to designate a new directory in your file system to store an Eclipse workspace.
Eclipse is always running with exact one workspace open.
As the name implies, a workspace stores everything needed in a given context of work, namely a set of related projects the user is working on as well as meta-data like preference settings, the current status of projects, to do lists, and more.
In case a user wants to work in different contexts, e.g. on different tasks, command File → Switch Workspace allows to create additional workspaces and to switch between them.
|
Any plug-in from the original Eclipse package or installed by the user later will be copied into the Eclipse installation directory, not in any workspace. Configuration and current state of plug-ins, on the other hand, are stored in workspaces. |
An Eclipse project is a technical term for a directory that often contains:
-
files of specific types for source code, scripts, XML files or other data
-
build settings, configurations
-
dependency definitions (remember the dependencies between plug-ins above?)
-
other Eclipse projects.
File → New → Project… offers many different types of projects that the user can choose from, e.g. Java projects to create Java programs, Ecore modeling projects, or general projects, that simple hold some arbitrary files.[2]
|
Files that do not belong to a project are invisible for Eclipse! |
The projects belonging to a workspace can either be directly stored within the workspace as sub-directories (the default offered to the user when creating a new project), or linked from it, that is the workspace just holds a link to the project directory that lives somewhere in the file system outside of the workspace. Linking allows to work with the same projects in different workspaces.
While it sometimes makes sense to share or exchange workspaces between users,[3], I do not recommend this for now.
Projects, in contrast, are shared between users most of the time, usually via Git.
In general, I would suggest to store Eclipse projects outside workspaces at dedicated locations in the user’s file system.
That way, we can follow the convention that local Git repositories should all be located under
<userhome>/git.
Setup Eclipse Modeling Tools
Starting with version 2022-03 Eclipse packages come with a bundled Java Development Kit (JDK), version 17. Thus, there is no need anymore to install a JDK manually.
Our graphical and form based modeling tools, e.g. Insel 9.0 and Parameter Catalogs, run on top of Eclipse Sirius, an open source framework that provides a set of features and plugins that can be added to any Eclipse package to transform it into a very flexible modeling workbench.
We will install Eclipse package Eclipse Modeling Tools first and, then, Eclipse Sirius on top. To get current version 4.23 (2022‑03) of Eclipse Modeling Tools, go to www.eclipse.org/downloads/packages/. On this page you may see "Try the Eclipse Installer" or similar. Do not follow this advice, since we want more control over what will be installed. Instead, look for package Eclipse Modeling Tools and click the download link for your operating system and system architecture displayed on the right:

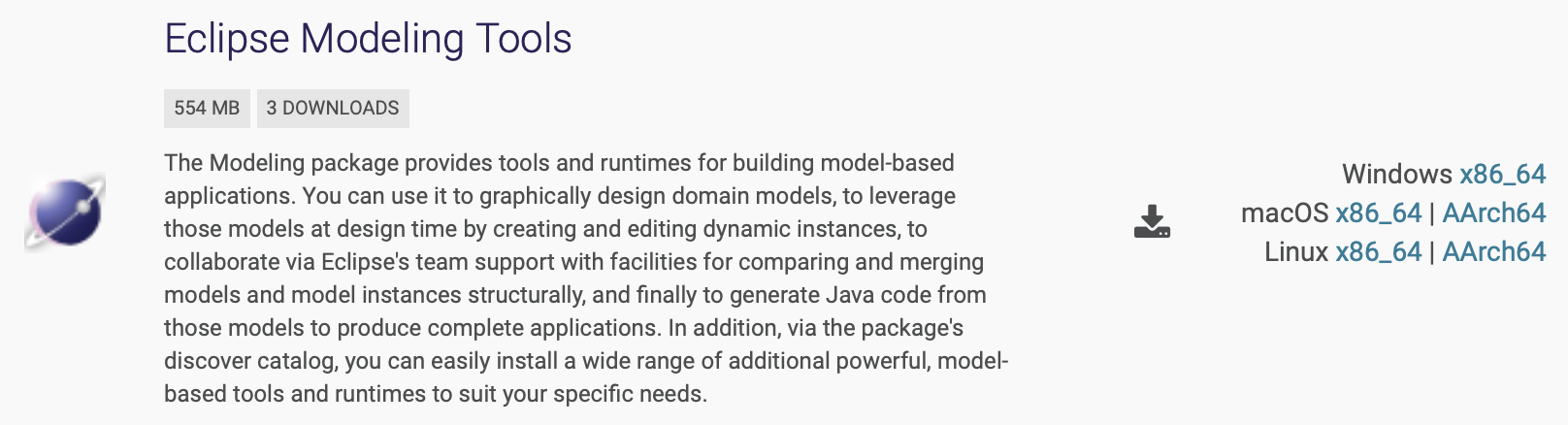

Finally, click on Download and wait for the 550 something MB package to arrive.
On macOS this is a disk image file (.dmg) that is mounted by a double click. Drag and drop Eclipse to folder Applications and rename the copy to something more specific like EclipseModeling2203.
On windows and Linux unzip/extract the downloaded file and possibly rename the resulting application to EclipseModeling2203 or similar. Then, move the application to a suited directory, but not Programs or Programs (x86) on Windows!
|
Special installation note for Windows: We found that sometimes plug-ins cannot be added to Eclipse, if it is installed in folder Programs or Programs (x86). Since we have to add plug-ins for Sirius and for handling units and quantities below, please make sure to unzip the installation package elsewhere, e.g. the Desktop or the user’s home directory. |
|
Depending on the operating system, several security dialogs have to be acknowledged during installation and first launch of Eclipse Modeling Tools. |

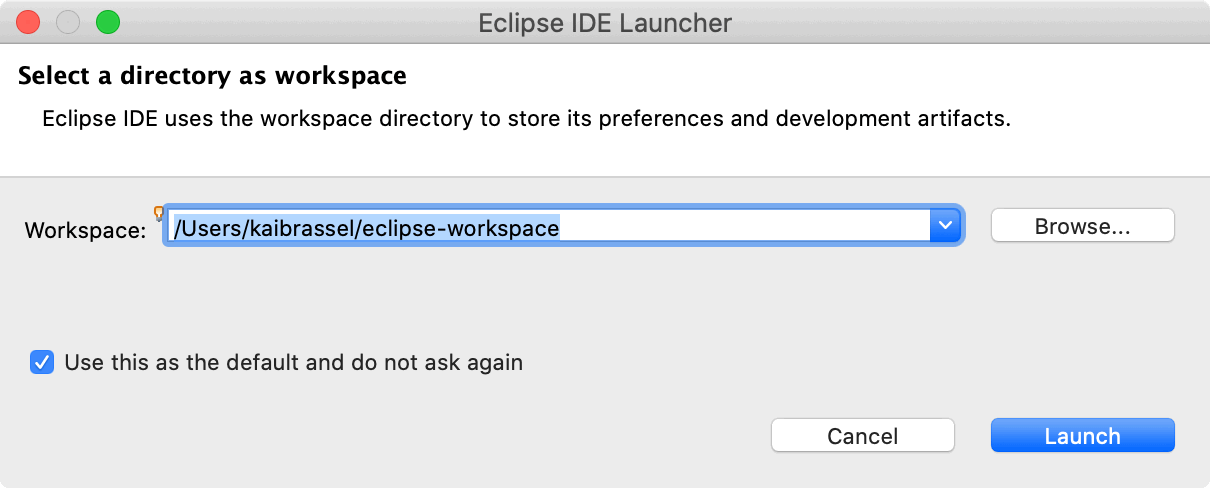

After installation has finished, launch the application for the first time and you will see a dialog for choosing a new empty directory as its workspace.
More workspaces might come into existence later, so replace the proposed generic directory path and name with a more specific one, e.g.EclipseWSCatalogs.
The main window appears with a Welcome Screen open.
Especially under Workbench Basics you will find exhaustive documentation on Eclipse that might be of interest later, e.g.:
-
Workbench User Guide
-
Concepts: perspectives, projects, views, editors, features, resources, …
-
Tasks: Working with perspectives, views and editors, installing new software. …
-
-
EGit Documentation
-
EGit User Guide
-
Git for Eclipse Users
-
-
Ecore Tools User Manual: Learn how to design Ecore models.
For now, you can dismiss the welcome screen. It can be opened anytime by executing Help → Welcome.
Now you should see the initial window layout with Model Explorer and Outline on the left and a big empty editing area to the right with a Properties view below.
While package Eclipse Modeling Tools already contains Sirius features that let you create graphical Ecore models, features for specifying your own forms and graphical editors are still missing. You can add these features easily with Eclipse’s built-in update mechanism:
-
Open dialog

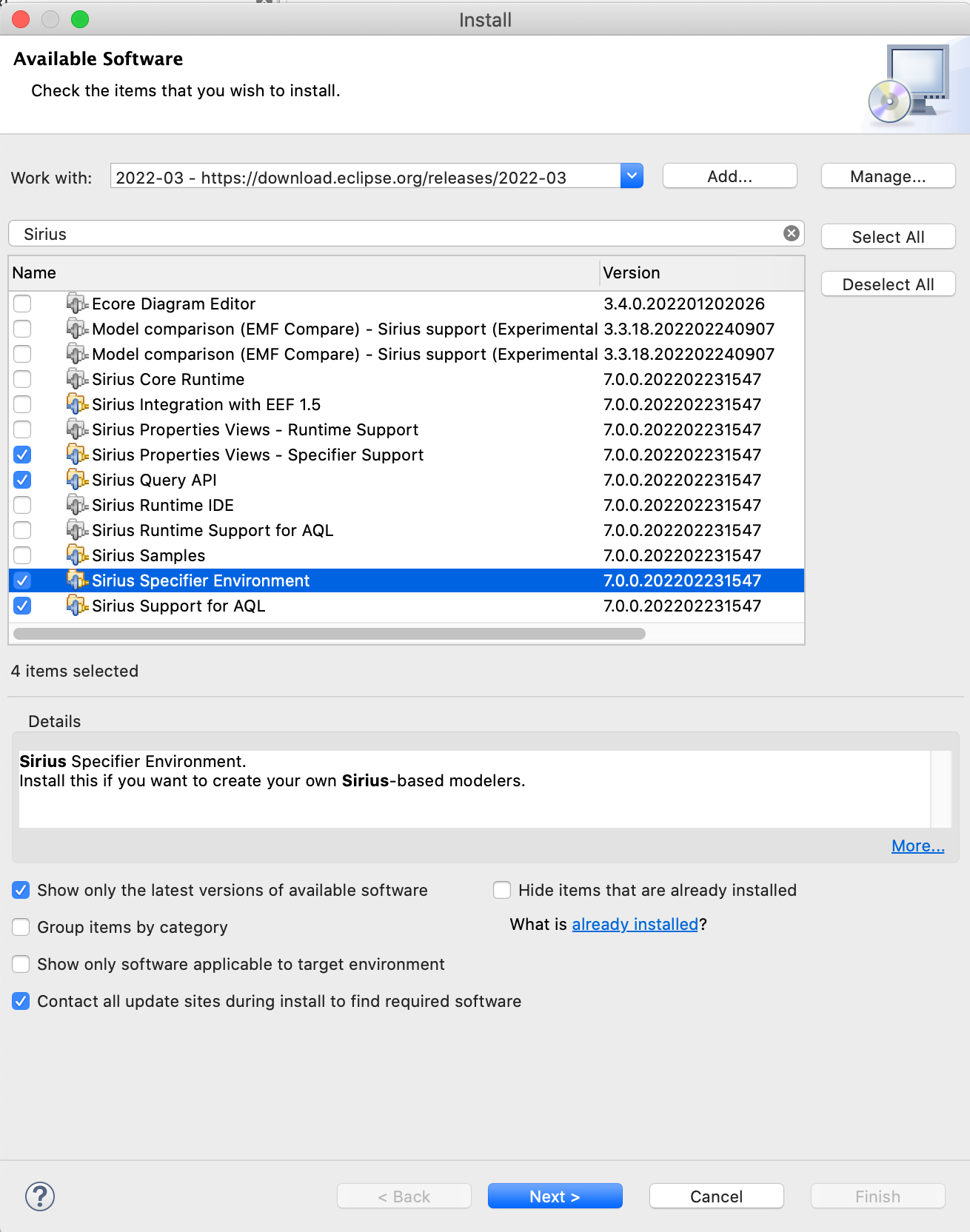

Help → Install New Software…(see screenshot below) -
For Work with: choose software site
2022-03 - https://download.eclipse.org/releases/2022-03/ -
Deselect Group items by category
-
Type Sirius into the search field
-
From the list of features select
-
Sirius Properties Views - Specifier Support -
Sirius Query API for AQL -
Sirius Specifier Environment -
Sirius Support for AQLand clickNext >
-
-
Acknowlege any licenses and restart Eclipse when asked for.
Now we use the same update mechanism to add software components that were created specifically for parameter catalogs and hosted at the transfer portal of HfT Stuttgart.
Parameter catalogs should be able to represent quantities, not just bare numbers. See Unit of measurement libraries, their popularity and suitability for a systematic account of open source solutions in the this area. Java provides an extensive framework to deal with quantities and their units defined in Java Specification Request (JSR) 385. The reference implementation for this framework is Indriya. Demos of its usage can be found at https://unitsofmeasurement.github.io/uom-demos/.
While Indriya offers all common SI units and more, the author provided additional units specific to urban simulation plus specialized Ecore types for specifying these units for attributes in Ecore data models as an Eclipse feature named City Units.
The new types are named Quantity and TimeOfDay. Some examples of valid unit symbols are listed in this README.

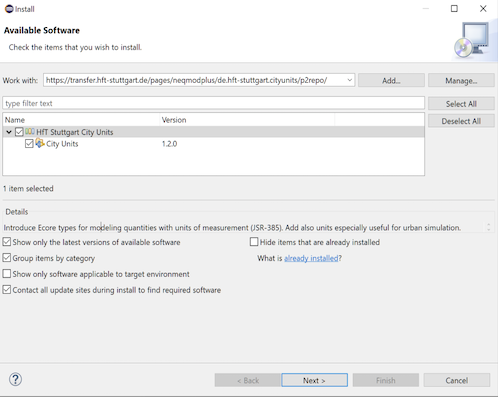

To install City Units, open dialog Help → Install New Software… and enter site https://transfer.hft-stuttgart.de/pages/neqmodplus/de.hft-stuttgart.cityunits/p2repo like depicted below.
Select City Units, press Next > and acknowledge all following dialogs, including security warnings.
Finally, restart Eclipse to complete installation.
Exercise: Modeling a Parameter Catalog with Ecore
Before we start working on real catalog projects hosted in a Git repository in the next section, let us first create a demo project for playing around and learning basic modeling skills.
There are two hard problems in computer science: cache invalidation, naming things, and off-by-1 errors.
It takes time and effort to come along with good names for model entities, projects, files, and so on. Also, specific naming conventions are in place to enhance readability of models and program code. Since it is not always clear where names provided during modeling are used later, I compiled a list of names important in Ecore projects and added examples and comments to elucidate their meaning and naming conventions.
| Name | Demo Catalog Example | Real World Expample |
|---|---|---|
Namespace URI |
||
Namespace Prefix |
democat |
buildphys |
Base Package (reverse domain)[4] |
org.example |
de.hftstuttgart |
Main Package |
democatalog |
buildingphysics |
Eclipse Project[5] |
org.example.democatalog.model |
de.hftstuttgart.buildingphysics |
Class Prefix |
Democatalog |
Buildingphysics |
XML File Suffix |
democatalog |
buildingphysics |
Classes |
e.g. SolarPanel |
e.g. WindowType |
Attributes |
e.g. nominalPower |
e.g. id |
Associations |
e.g. solarPanels |
e.g. windowTypes |
Classes are written in Camel case notation starting with an upper case letter. Associations and attributes are written the same way, but starting with a lower case letter.
All other names should be derived from the globally unique name space of the project, in our example: example.org/democatalog.
It consists of a global unique domain name and a path to the project, unique within that domain.
Use the names of example Demo Catalog to create your first Ecore modeling project:
-
Execute
File → New → Ecore Modeling Projectfrom main menu — notModeling Project! -
Name the project
org.example.democatalog.modeland uncheck Use default location so that the new project is not stored in workspace but a different directory you create/choose, then clickNext > -
Provide
democatalogas main Java package name, uncheck Use default namespace parameter and providehttp://example.org/democatalogas Ns URI anddemocatas Ns prefix -
Click
Finish.

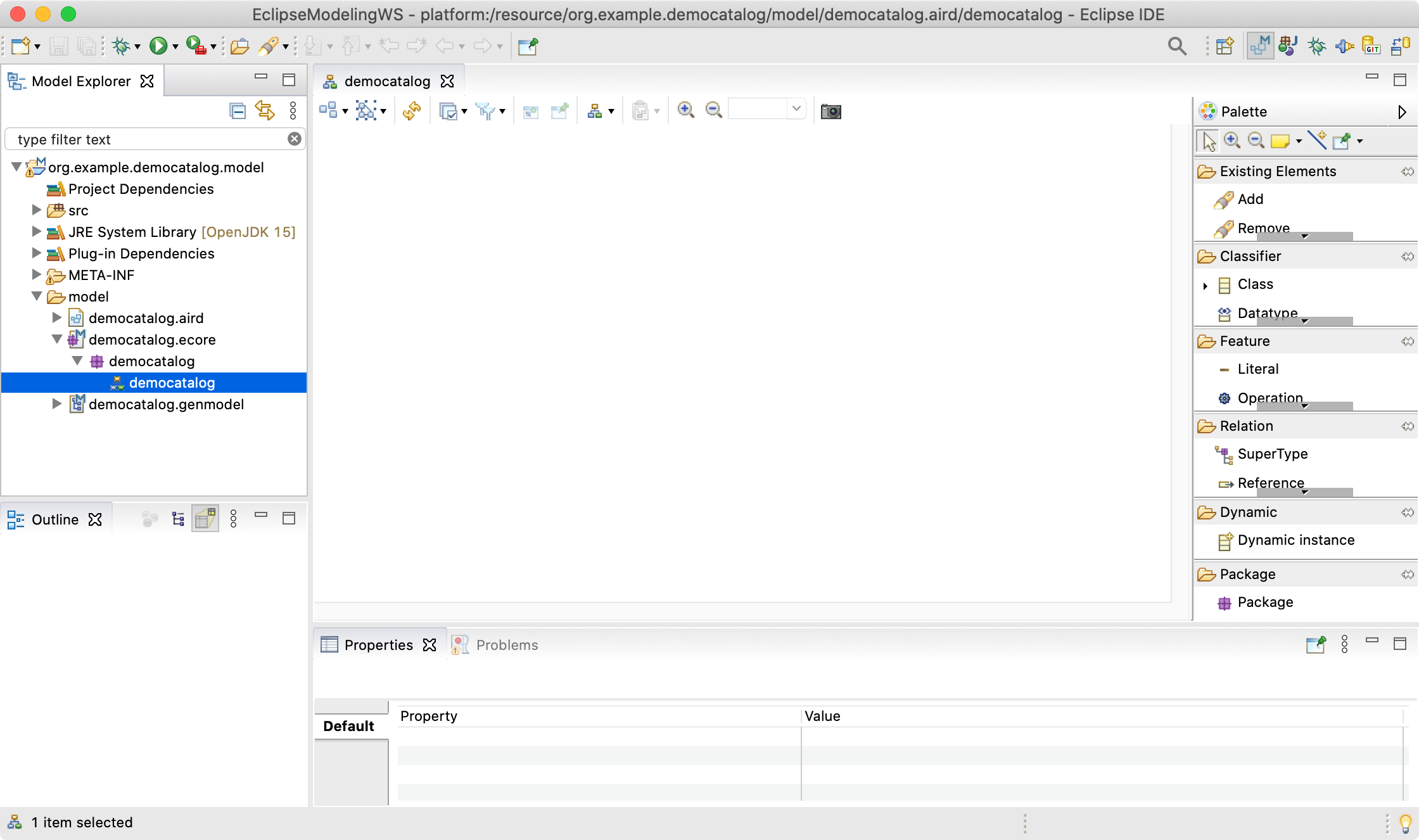

Eclipse should look like below with an new empty graphical Ecore diagram editor opened.
The diagram is automatically named democatalog after the package name for the Java classes that will be generated from it (provided above).
The Model Explorer shows the contents of the new Ecore modeling project.
To get your feet wet, do this:
-
Drag a Class from the palette on the right onto the editor’s canvas: it will materialize as a rectangle labeled
NewEClass1. -
The class symbol should be selected initially, so you can see its attributes in the Properties view.
-
In there replace
NewEClass1byEnergyComponentsCatalogto rename the class. -
Click anywhere on the canvas and notice that the class symbol is deselected and the toolbar at the top adapts accordingly.
-
In the toolbar change
100%to75%to scale diagram. -
Execute
File → Saveto save model and diagram on disk. -
Close diagram editor
democatalogby closing its tab. -
Reopen saved diagram by double click on entry
democatalogin Model Explorer.
Technically, everything is in place now to begin modeling the data that the projected catalog shall contain. Except … understanding the basics of object-oriented modeling would be helpful. This is why developers should support domain experts at this stage.
Ecore diagrams are simplified UML class diagrams. Here some resources on what this is all about:
|
Beginners are strongly encouraged to read the first two resources. The first one contains a gentle introduction, especially suited for domain experts. The second one can also serve as reference. |
We will touch central object-oriented concepts Class, Object, Attribute, Association, Composition, and Multiplicity in an example below, but work through above sources to get a deeper understanding and to enhance your modeling skills.
Note that above sources differentiate between conceptual and detailed models. We go for detailed models, since only these contain enough information to generate code. Having said this, it is usually a good idea to have two or three conceptual iterations at a white board to agree on the broad approach before going too much into detail. But even if one starts with Ecore models right away, these also can be adapted any time to follow a new train of thought.

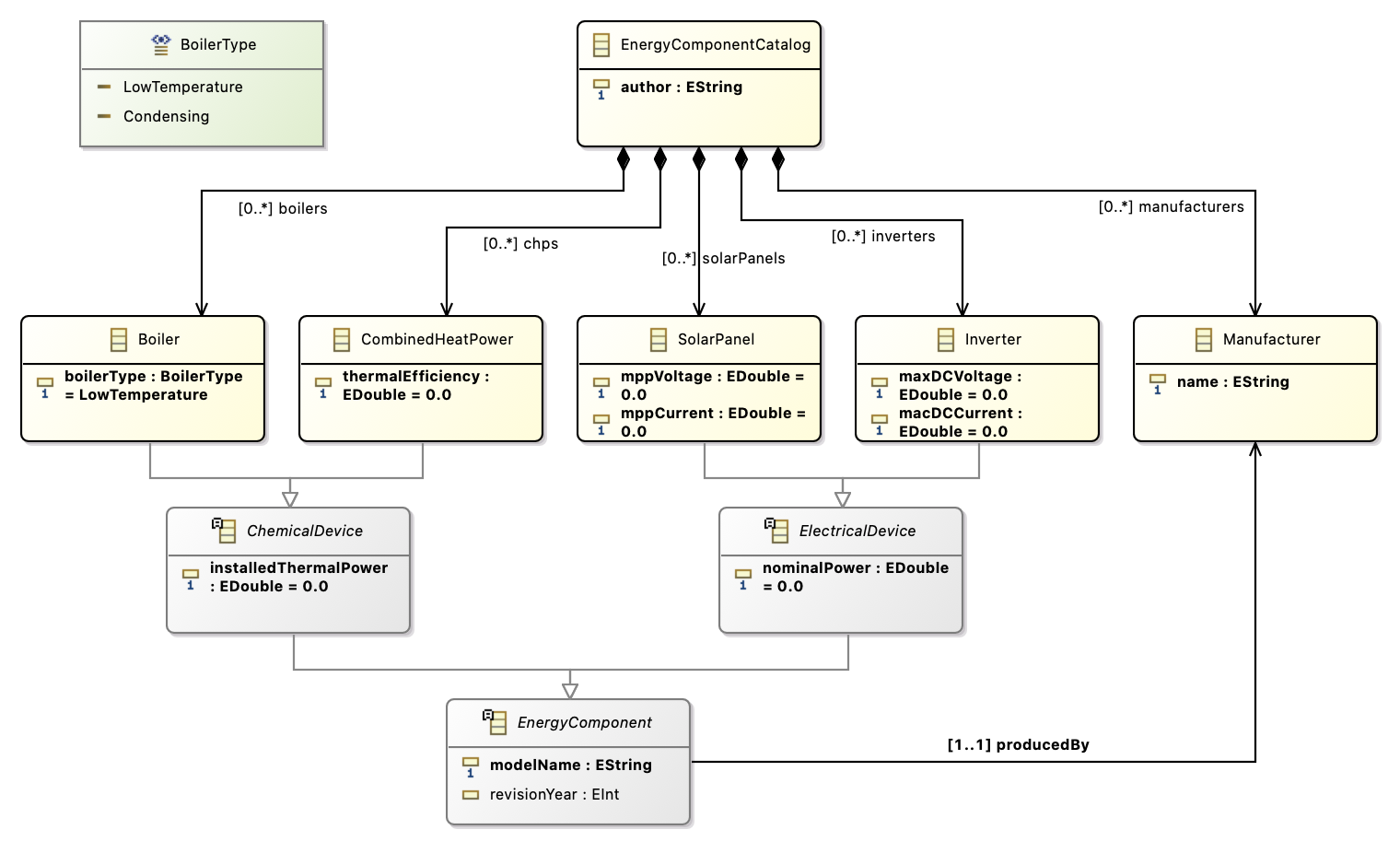

See here the essential and typical structure of a parameter catalog in a class diagram. Instead of artificial example classes like Foo and Bar it shows classes from an existing catalog, albeit in very condensed form.
\n@startuml
together {
class SolarPanel
class Inverter
}
class EnergyComponentsCatalog {
author: String
}
abstract class EnergyComponent {
modelName: String
revisionYear: int
}
abstract class ChemicalDevice {
installedThermalPower: double
}
abstract class ElectricalDevice {
nominalPower : double
}
class Boiler {
type : BoilerType
}
class CombinedHeatPower {
thermalEfficiency : double
electricalEfficiency : double
}
class Manufacturer {
name : String
}
enum BoilerType {
LowTemperature
Condensing
}
class SolarPanel {
mppVoltage : double
mppCurrent : double
}
class Inverter {
maxDCVoltage : double
maxDCCurrent : double
}
BoilerType -[hidden]- Boiler
ElectricalDevice --|> EnergyComponent
SolarPanel --|> ElectricalDevice
Inverter --|> ElectricalDevice
ChemicalDevice --|> EnergyComponent
Boiler --|> ChemicalDevice
CombinedHeatPower --|> ChemicalDevice
EnergyComponentsCatalog *-- "0..*" Inverter: inverters
EnergyComponentsCatalog *-- "0..*" SolarPanel: solarPanels
EnergyComponentsCatalog *-- "0..*" Boiler: boilers
EnergyComponentsCatalog *-- "0..*" CombinedHeatPower: chps
EnergyComponentsCatalog *-- "0..*" Manufacturer: manufacturers
EnergyComponent -up-> "1..1" Manufacturer: producedBy
@endumlThe diagram models four types of technical components whose data shall be stored in the catalog, e.g. for parameterization of simulation models later: Boiler, CombinedHeatPower, SolarPanel, and Inverter.
The catalog itself is represented by class EnergyComponentsCatalog. Unlike dozens, hundreds, or even thousands of objects to be cataloged — Boilers, Inverters etc. — there will be just exactly one catalog object in the data representing the catalog itself. Its "singularity" is not visible in the class diagram, but an Ecore convention requires that all objects must form a composition hierarchy with only one root object.
If, in the domain, one object is composed of others, this is expressed by a special kind of association called composition.
Compositions are depicted as a link with a diamond shape attached to the containing object. In the Boiler case said link translates to: The EnergyComponentsCatalog contains — or is composed of — zero or more (0..*) boiler objects stored in a list named boilers.
|
Note that class names — despite the fact that they model a set of similar objects — are always written in singular! Names for list-like associations and attributes usually are written in plural form. |
Besides composition of objects, the model above shows another, completely different, kind of hierarchy: the inheritance hierarchy between classes. Whenever classes of objects share the same attributes or associations, we don’t like to repeat ourselves by adding that attribute or relation to all classes again and again. Instead, we add a super class to define common attributes and associations and connect it to sub classes that will automatically inherit all the features of their super class.
In our example above, common to all four energy components are attributes modelName and revisionYear, thus these are modeled by class EnergyComponent that is directly or indirectly a super class of Boiler, CombinedHeatPower, SolarPanel, and Inverter.
Similar, Boiler and CombinedHeatPower share attribute installedThermalPower factored out by class ChemicalDevice.
SolarPanel and Inverter share attribute nominalPower modeled in abstract class ElectricalDevice.
You probably noticed a fifth type of objects contained in the catalog, namely Manufacturer objects stored in list manufactureres.
How come? Ok, here is the story:
Exp: “I’d like to store a component’s manufacturer. Shall I add a String attribute manufacturerName to all classes like Boiler, Inverter and so on to store the manufacturer’s name?”
Dev shudders: “Well, what do you mean by "… and so on"?”
Exp: “Basically, I mean all energy components.”
Dev: “Fine. We already have a class representing all those energy components, brilliantly named EnergyComponent. Thus, we can define manfacturerName there, following one of Developer’s holy principles: "DRY — Don’t repeat yourself!"
By the way: Is the name all you want to know about manufacturers?”
Exp: “Mhm, maybe we need to know if they are still in business …”
Dev: “… or even since when they were out of business, if at all …”
Exp: “… and the country or region they are active.”
Dev: “Ok, so it’s not just the name — we need a class Manufacturer to model all these information.”
Exp sighs.
Dev: “Come on, its not that hard to add a class to our data model, isn’t it?”
Exp: “Ok, but how can we express what components a manufacturer produces?”
Dev: “Wasn’t it the other way around? I thought, you just wanted to know the manufacturer of a component?”
Exp: “What is the difference?”
Dev: “In data modeling, it is the difference between a uni-directional and a bi-directional association.”
Exp: “…?”
Dev: “Let’s put it that way: The difference between a link with an arrow on one side or on both sides.”
Exp: “Ok. We don’t need a list of components per manufacturer, but simply a reference from the component to its manufacturer.”
Dev: “Fine, then in Ecore please create a simple reference from class EnergyComponent to class Manufacturer, maybe named producedBy.”
Exp: “I will try this and get back to you.”
Dev: “Fine … good meeting.”
Observe in our data model, reference producedBy points from EnergyComponent to Manufacturer making it uni-directional reference.
One can simply query the manufacturer of a product, but not the other way around.
With a bi-directional reference both queries would be available.
Observe also the annotations 0..* and 1..1 near class Manufacturer.
These are multiplicities of associations: An EnergyComponentsCatalog contains zero, one, or many objects of class Manufacturer and an EnergyComponent must reference exactly one manufacturer — not less, not more.
To recapitulate: Our example parameter catalog already exhibits all four types of relations provided by Ecore.

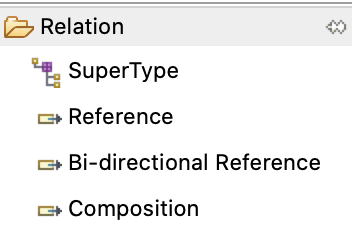

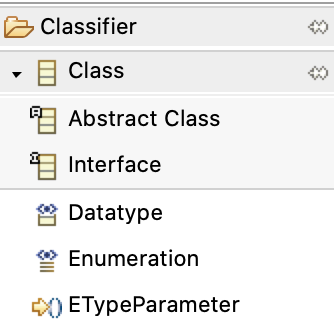

You find these in the Ecore editor’s palette shown here.
To create a relation between a sub class and a super class use tool SuperType.
Use the other tools to create an association between classes, may it be a simple (uni-directional) reference, a bi-directional reference, or a composition.
Obviously, attributes are central in data modeling.
Create one by dragging it from the palette onto our one and only class so far: EnergyComponentsCatalog.
The class symbol will turn red to indicate an error.
Hover with the mouse pointer over the new attribute and a tooltip with a more or less helpful error message will appear.
Current error is caused by that no data type was set for the new attribute.
Data types for attributes can be integer or floating point numbers, strings, dates, booleans, and more.
To get rid of the error:
-
If not already selected, select new attribute by clicking at it in the editor.
-
In view Properties find
ETypeand click button…to see a quite long list of available data types. -
Choose
EString [java.lang:String]from the list and the error is gone.
Change the attribute’s name to author and the class should look like shown here.
Most data types to choose from begin with letter E like in Ecore. These are just Ecore enabled variants of the respective Java types, thus, choose EInt for an int, EFloat for a 32 bit floating point number, EDouble for a 64 bit one, and so on.
Ecore allows to introduce new data types. We employ this feature later to enable data models with physical units and quantities.
There exists one other means to define the values an attribute can take, namely enumerations of distinct literals. Take Monday, Tuesday, Wednesday, … as a typical example for representing weekdays.
In our example data model you’ll find one Enumeration named BoilerType with values LowTemperature and Condensing.
The next section deals with generation of Java code from data models. To have more to play with, please implement our example model in Ecore now.
To do this, there is one more thing to know about classes: the difference between ordinary classes and abstract classes. 'Ordinary class' doesn’t sound nice, therefore, classes that are not abstract are called concrete classes. Our example diagram depicts abstract classes with letter A while concrete classes are labeled with C. You add abstract classes to a model with a special palette tool shown here.
The thing is: Objects can be created for concrete classes only!
In our example, it makes no sense to create an object from class EnergyComponent, because there is not such a thing like an energy component per se. Therefore, this class is abstract. It is true that an inverter is an energy component, thus inheriting all its features, but it was created as Inverter, not as EnergyComponent.
Super classes will be abstract most of the time.
So my advice is: Model a super class as abstract class unless you convince yourself that there exist real objects in the domain that belong to the super class but, at the same time, do not belong to any of its sub classes.
In the Ecore editor properties view, you can specify if a class is abstract or not, simply by toggling check box Abstract.
Two more tips and you are ready to rock and roll! — At least with your homework.
|
An exhaustive user manual for Ecore diagram editor is available at |
|
If Ecore models get bigger, you may find it more convenient to work with a form based UI instead of, or in addition to, the diagram editor.
Open this kind of editor via command |
That’s it for the data modeling part. By now, your Ecore model should look like this:
Making a Prototype Application to Create and Edit Data
In this section you will get a glimpse on how to create an application to create and edit data conforming to the Ecore data model of our demo parameters catalog.
Topics described here (and much more) are discussed in this Sirius Starter Tutorial.
If you are less interested in the details of UI creation, but more in working on already existing parameter catalog software and data, you may skip this section for now and proceed with [Working with Git Hosted Catalogs].
Let us bring the Ecore data model to life, that is, generate code from it that allows to create, read, update, and delete (CRUD) concrete data objects of modeled classes in computers:
-
Make sure all files are saved (
File → Save All) -
Execute
Generate → Allfrom the context menu of Ecore editordemocatalog
Generate → All creates classes that represent the modeled data in code at first. These classes are located in three packages under directory src-gen in org.example.democatalog.model. Then, the command generates Edit Code and Editor Code within two new Eclipse projects named org.example.democatalog.edit and org.example.democatalog.editor, again with generated classes in src-gen.

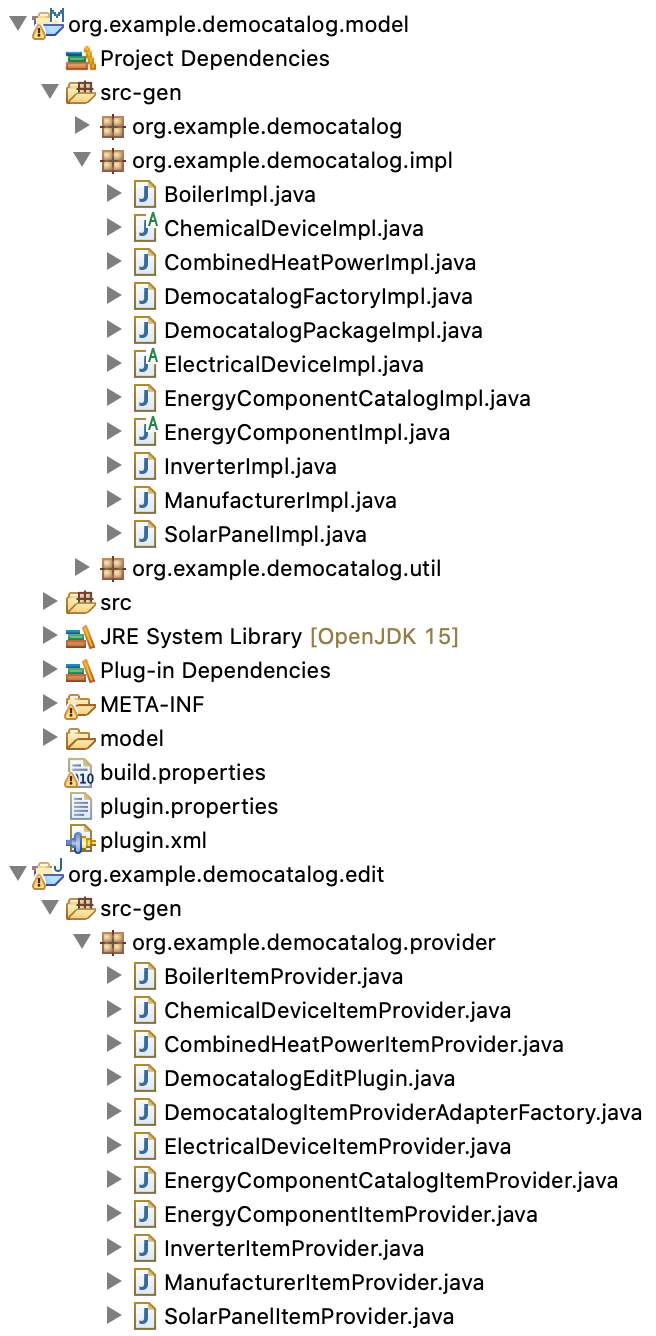

You may have a look at some Java classes for curiosity by double clicking at them in Model Explorer. There is no point in trying to understand the code in detail, but observe token @generated present in the comments of all classes, fields and methods. Classes, fields and methods marked with this token are (re)generated whenever above commands are executed.
Sometimes it is required to manually adapt generated code — after all our concern is "low code", not "no code" development. In that case, we will replace @generated by @generated NOT to prevent code regeneration of the respective item.

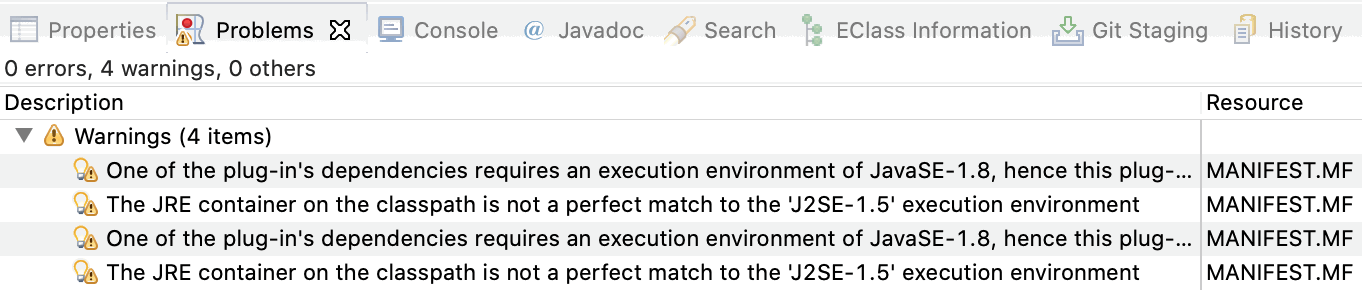

After code generation, you may have noticed some warnings showed up in view Problems.
In general, it is highly recommended to resolve warnings, and errors of course, but we will make an exception from the rule, since the warnings are uncritical and would reappear each time code is regenerated.
Firstly, launch a new instance of the running Eclipse application:
-
Execute
Run → Run Configurations…from the main menu and double click on Eclipse Application to get a New_configuration. You may want to rename New_configuration to DemoCatalog or the like. -
Press
Runto start the new Eclipse application that is basically a copy of your running Eclipse but with a different workspace. -
In the new application window close the welcome screen and open the Sirius perspective using the suited button in the top right corner of the main window. This perspective provides specific Sirius menus and new project types.
Secondly, create a project that will contain catalog data (remember Eclipse can only handle files that are part of a project):
-
From main menu execute
File → New → Modeling Project— notEcore Modeling Project! -
Name the project
org.example.democatalog.dataand uncheck Use default location so that the new project — again — is not stored in workspace but a different directory you create/choose, usually a directory named like the project and sitting side by side to the model, edit and editor project directories created above. -
Click
Finish.
Thirdly, create a first XML file for catalog data:
-
From main menu execute
File → New → Other…and typedemointo search field Wizards: -
Select
Example EMF Model Creation Wizards → DemoCatalog Modeland clickNext > -
Select
org.example.democatalog.dataas parent directory and name the data fileFirst.democatalog -
Click
Next >and chooseEnergy Component Catalogas the root data object that will be created initially -
Click
Finish.
A new entry named First.democatalog should appear in the Model Explorer.
Double-click it and a generic editor will open.
In principle, one could use this editor to add new data to the catalog via New Child > in the context menu over entry Energy Component Catalog.
Data of a selected entry can be edited in view Properties that is generic, too.
When done, you may save First.democatalog so that after closing the application data will reappear if it is opened again as described above.
The generic editors don’t get as far. Usually, one would like to have tables, custom property sheets, input validation, and more. Well, Sirius is all about creating nice graphical and form-based editors for data models specified in Ecore. To do this we need one more Eclipse project.
Like the data of our catalog is modeled as an Ecore file using a dedicated graphical editor, so will the user interface (tables, trees, diagrams, property views) be modeled in a Sirius .odesign file that lives in a special Eclipse project that we create while still in the (second) Eclipse application that hosts the data:
-
Execute
File → New → ViewPoint Specification Project -
Name the project
org.example.democatalog.design, uncheck Use default location as always and create/choose a directory with the same name as the project besides to the model, edit, editor, and data project directories -
Click
Finish.
A special editor for file democatalog.odesign appears automatically.
In it select MyViewpoint and rename it in Properties to Catalog.
A viewpoint provides a set of representations (tables, trees, diagrams, property views) that end-users can instantiate.
In what follows, we work with the democatalog.odesign editor. Say, we want to add a table for boilers to the UI:
-
From context menu over viewpoint Catalogs execute
New Representation → Edition Table Descriptionto create a new description that is automatically selected and shown in view Properties -
To connect the table with its data model, choose tab Metamodels in Properties, click on Add from registry and select
http://example.org/democatalog. -
Go back to tab General and enter
Boiler_tableas Id. -
In the green input field Domain Class press key ctrl-space and choose
democatalog::EnergyComponentCatalogfrom the list.
From the above Boiler_tables know that they present data conforming to our http://example.org/democatalog data model and that boiler data are found as part — or "below" — the Energy Component Catalog.
Next, specify the lines to be displayed in the table:
-
From context menu over Boiler_table create
New Table Element → Line -
In tab General in Properties, enter
Boiler_lineas Id: -
In the green input field Domain Class press key ctrl-space and choose
democatalog::Boilerfrom the list.
And now for the columns:
-
From context menu over Boiler_table create
New Table Element → Feature Column -
In tab General in Properties, enter
Name_colas Id: -
In the green input field Feature Name press key ctrl-space and choose
modelNamefrom the list -
Repeat the above steps for
boilerTypeandinstalledThermalPoweraccordingly.

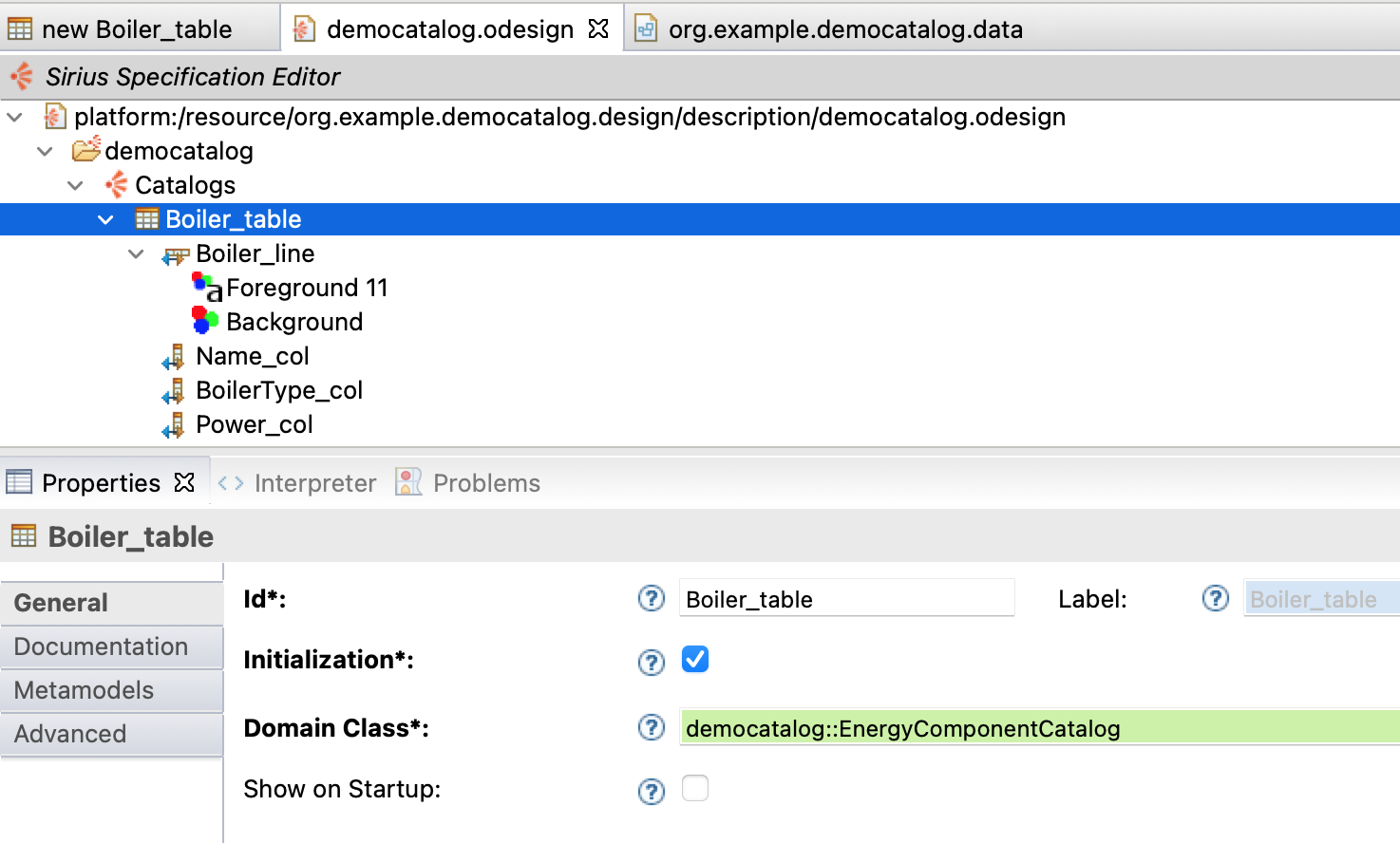

After addition of some foreground and background styles, the design of the UI looks like this.
Save it!

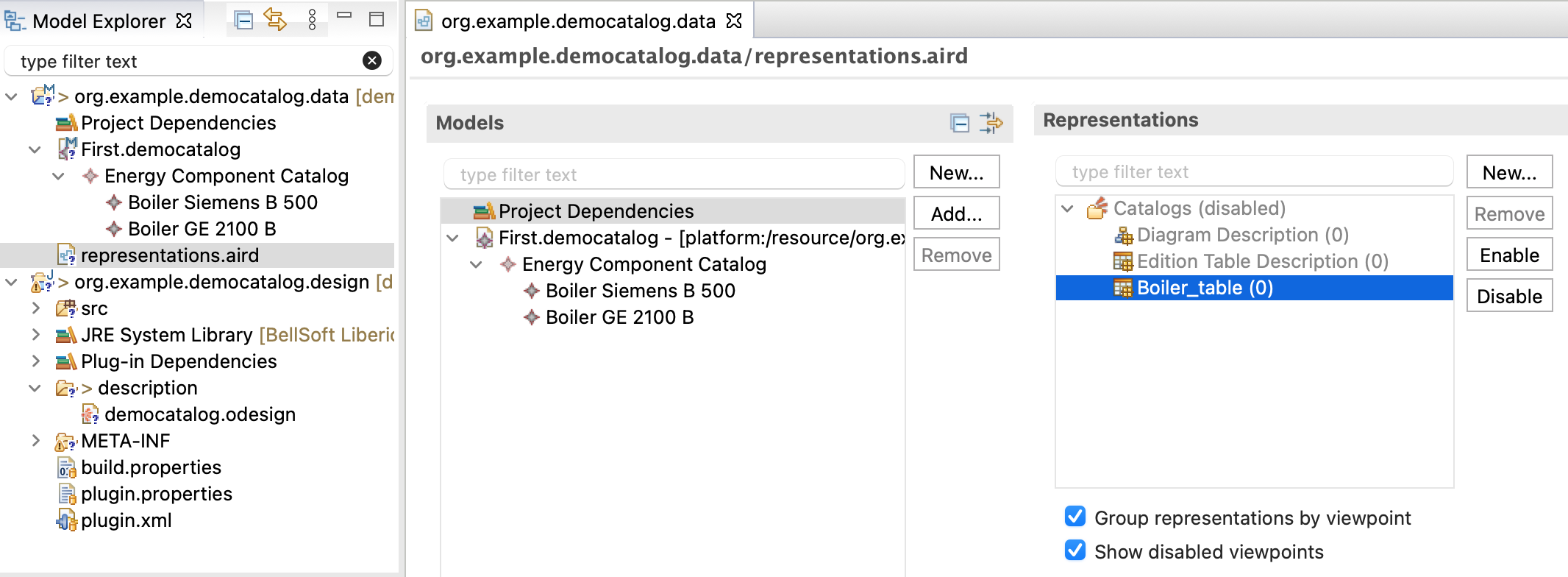

To create an instance of the table just designed double-click on representations.aird in the data project:
In case viewpoint Catalogs under header Representations is still disabled as shown above, select it and press Enable. Then:
-
Press
New…to open a Create Representation Wizard -
Choose
Boiler_tableand clickNext > -
Select
Energy Components Catalogas data source and clickFinish -
You are prompted for the new tables name: simply confirm the proposed name with
OK.

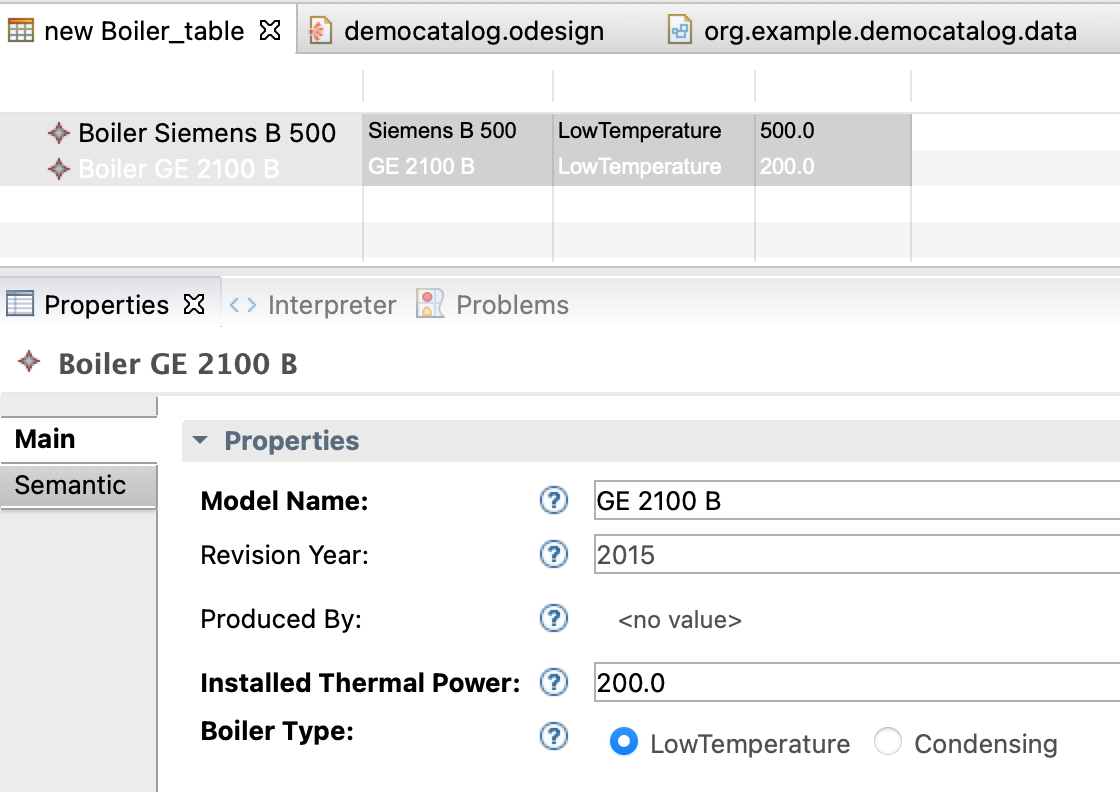

The screenshot on the right shows new Boiler_table with just two entries. Details of the selected entry are editable in Properties.
Is your table empty? In this case you probably did not add example data using the default editor as described above.
But you can add new Boilers any time via command New child → Boiler in the context menu of Energy Component Catalog in section Models of the representations editor depicted above.
Note, that you can delete boilers from the table’s context menu, but currently there is no button or menu entry to create new boilers.
Such a command would have to be described in democatalog.odesign first.
Be aware that applications with UI design and example data launched from development environment are meant to be prototypes for the final software only. In fact, any saved changes in the design file are instantly reflected in the UI. During refinement of model and UI, data sets can be created, edited, and tested for usability without the need to built deployable software component. (On deployment, see parts Accessing and Using Parameter Catalogs and Build (Parameter Catalog) Applications with Eclipse Tycho below.)
Iteratively the UI design must be adapted to changes in data model, although some changes are automatically reflected in the generated UI, at least for default forms. Data model changes can also can render existing XML data incompatible. There are tools for data migration, but for now, recreation of test data or manual editing of XML file is the way to go.
As you may imagine, this is just the tip of the iceberg of what can be done with the Sirius framework for designing graphical UIs.
While domain experts should be capable to create and to refine Ecore data models, the UI design of a parameter catalogs will mainly be done by software developers.
However, since the UI is not implemented by program code, but a description in an .odesign file, domain experts can easily enhance and tweak it, e.g. by adding or reordering columns of a table.
Working with Git Hosted Parameter Catalogs
Ecore data models and Sirius based UI design are used to create parameter catalog software hosted in Git repositories. To work with these, all you need is Java, Eclipse with required plug-ins for Sirius and Unit handling (see Setup Eclipse Modeling Tools for details.)
To connect to a Git repository open the Import Projects from Git wizard via File → Import… → Git → Projects from Git → Clone URI. Then:
-
Copy the URI of the git repository into the according input field, e.g.: https://rs-loy-gitlab.concordia.ca/parameter-catalogs-ecore/greenery-catalog.git and provide your credentials in fields User and Password. Tick check box Store in Secure Store and provide a master password if required! If you don’t, be prepared to be prompted for your credentials over and over again
-
Click
Next >and select a repository branch to check out, usually main or master -
Click
Next >and choose the directory on your file system where to store the repository, e.g.<user home>/git/greenery-catalog. Here, we adhere to the convention is to have all git repositories stored in<user home>/git/ -
After data transfer has completed, the wizard offers to Import existing Eclipse projects. Click
Next >and select the project with suffix.design,.model,.editand.editorfor import, e.g.ca.concordia.usp.greenerycatalog.modeletc. -
Click
Finish.
Now you can work on the data model like you did with the demo catalog. Find it under model in ca.concordia.usp.greenerycatalog.model (compare fig. New Ecore Modeling Project).
For data inspection and editing — and possibly modifying the UI — launch a new instance of the running Obeo Designer application by executing Run → Run Configurations…, double-click on Eclipse Application to get a New_configuration and give it a meaningful name (e.g. GreeneryCatalog).
Then, press Run to start the application, close the welcome screen and open the Sirius perspective using the suited button in the top right corner of the main window.
|
Simply reuse the Run Configuration specified above, when starting the application next time! |
Now, import the projects that contain data and UI design, respectively:
-
Execute
File → Import…for the import wizard -
Browse to the directory containing the projects (e.g.
<user home>/git/greenery-catalog) and check just the project with suffix.datafor import, e.g.ca.concordia.usp.greenerycatalog.data -
Click
Finish.
When closing the application, it asks to store or dismiss any changes in data or UI design. You can also save these any time with File → Save All.
For simplicity, the demo catalog only used built-in attribute types like EDouble, EInt, or EString.
On the other hand, real-world parameter catalogs use a custom type named Quantity that combines a numerical (double) value with a unit.
Symbols for defining units follow SI and other standards, including decimal prefixes like m for Milli or G for Giga as well as derived units, that is: mV, GV or kW·h/m³ are all valid unit definitions.
This is all documented well in the resources mentioned in section Add Plug-ins to deal with Quantities and Units above, but for convenience, a table with valid units, including some specific units for urban simulation, is compiled in UnitsExamples.md.
To set an attribute’s type to Quantity just select it in the model, choose tab Semantic in view Properties, click on EType and select Quantity from the list of available types. In the figure below, this was already done.

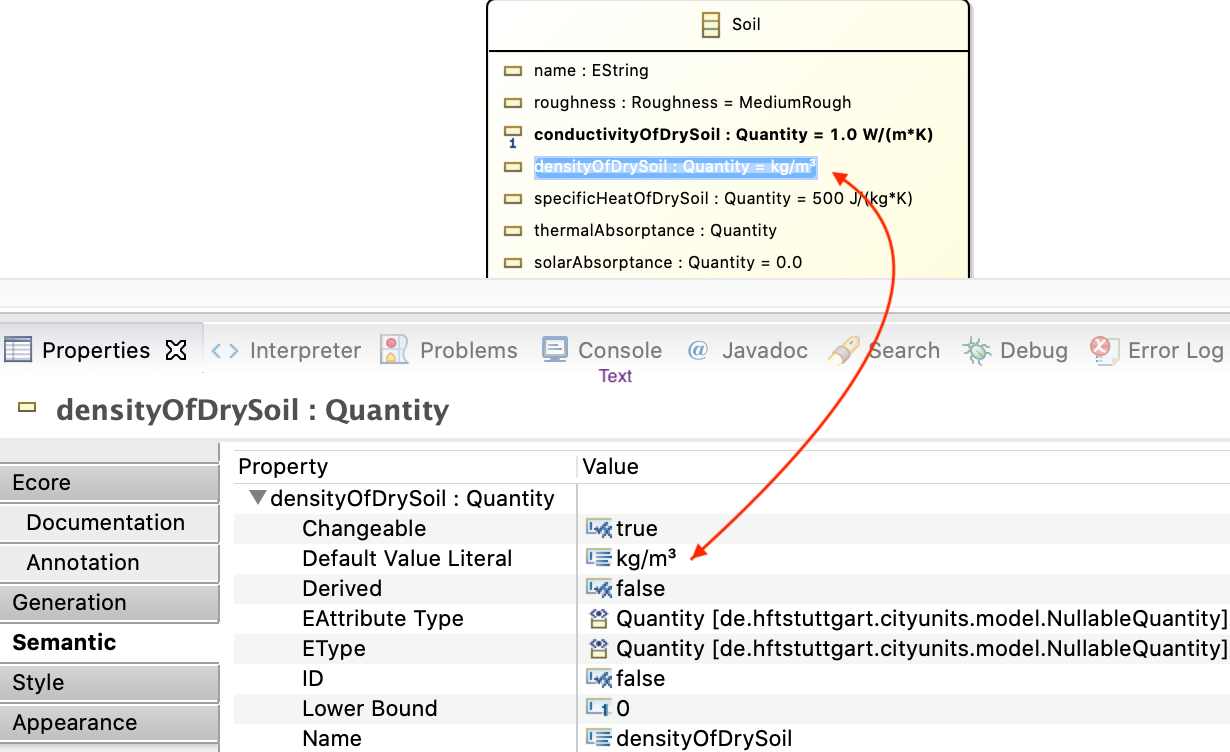

The red arrow shows how a unit is defined in field Default Value Literal. E.g., attribute densityOfDrySoil has unit kg/m³ assigned to it.
Note that, for this attribute, no numerical default value is given.
In contrast, conductivityOfDrySoil is given a unit and a default numerical value: 1.0 W/(m*K).
|
The unit of a Quantity is definied by the sub-string that follows the first space character in the string given in Default Value Literal. The sub-string before that space is interpreted as default numerical value of the Quantity. |
The rules for how a Quantity default value is converted to its unit and default (initial) numerical value are very "forgiving":
-
If no unit is given or it cannot be parsed to a valid unit, it will be regarded as dimensionless. E.g., index values, fractions and percentages are dimensionless quantities by purpose. While units may be displayed in the UI like
[kg], a dimensionless quantity will show up as[], that is as the empty string. -
If no numerical default value is present, then the numerical value is regarded as undefined.
-
You may choose to specify a quantity as dimensionless and without numeric default by leaving field Default Value Literal empty (or provide some non-sensical string).
By this rules, any string — including the empty string — will be interpreted as a Quantity somehow.
What is the point in declaring a dimensionless quantity for an attribute, anyway, instead of just declare it EDouble or EInt? The answer is that quantities can — and most of the time will — have a range of valid values defined.
As you can see in the screenshot, the allowed range of attribute values is defined by a so called Ecore annotation named UomQuantities.
It provides the minimal and/or maximal value for the attribute, inclusively.
If a minimal or maximal value is omitted or invalid, the range is not limited on that side.

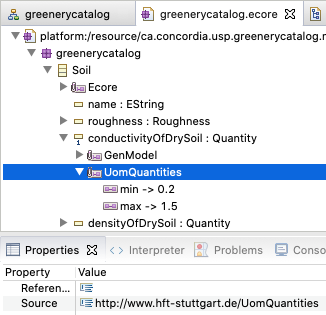

One could add annotations to an attribute in the graphical Ecore editor under tab Annotation in Properties, but it may be more convenient to do this in the standard editor that is opened by Open With → Sample Ecore Model Editor from the context menu over the Ecore model file in Model Explorer.
In this editor, define a range like this:
-
From the context menu of the attribute of interest execute
New Child → EAnnotationand typehttp://www.hft-stuttgart.de/UomQuantitiesinto fieldSourceas depicted above -
From the context menu of the new
UomQuantitiesannotation executeNew Child → Details Entryand provide values for keysminandmax, respectively.
|
The above typing is a one time effort only, since for defining further ranges, one simply copies an existing |
If a catalog’s end user tries to enter a number outside the given range in the UI, it will be adapted automatically to a valid value.
Again, domain experts use a specific annotation to provide short help texts that inform end-users about an attribute’s purpose, range and so on.
(These texts are displayed as tooltips when the users mouse stays on top of a question mark.)
And again, this is possible only in another kind of editor — this time the editor that is opened on a .genmodel in Model Explorer.
Each Ecore model is accompanied by a .genmodel that lives besides the respective .ecore file. Open the required editor from its context menu with Open With → EMF Generator.

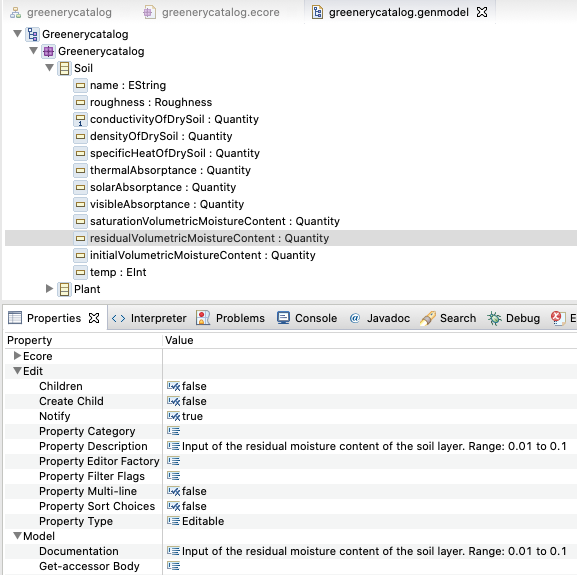

The picture below shows the details. Just open the .genmodel tree until you can select the attribute that shall be documented.
In its Properties provide the tooltip in field Edit → Property Description.
In this example, the same text was also copied to Model → Documentation.
These texts are automatically inserted into comments in the generated program code, so that they
can inform a programmer that wants to use the generated API.
Summary
Congratulations on making it this far. What have we achieved?
We get to know Eclipse Modeling Tools and created a graphical Ecore data model with one catalog class and five classes/types of domain objects therein. Classes have been defined by name, attributes, and relationships between them, often with cardinalities. Whenever classes shared some attributes or relationships we factored these out into super classes. An enumeration introduced a new attribute type as a set of named values.
From this data model, we issued commands to create Java code for representing the data in memory as well as to store and retrieve them on and from disk. Methods to create, read, update and delete data objects (CRUD) were generated, too.
We implemented a prototypical user interface for this data with Eclipse Sirius by providing a .odesign model for that very UI.
Lastly, we started working on real world parameter catalogs hosted in git repositories and introduced Quantity as a custom attribute type to model quantities as numerical values with defined units.
